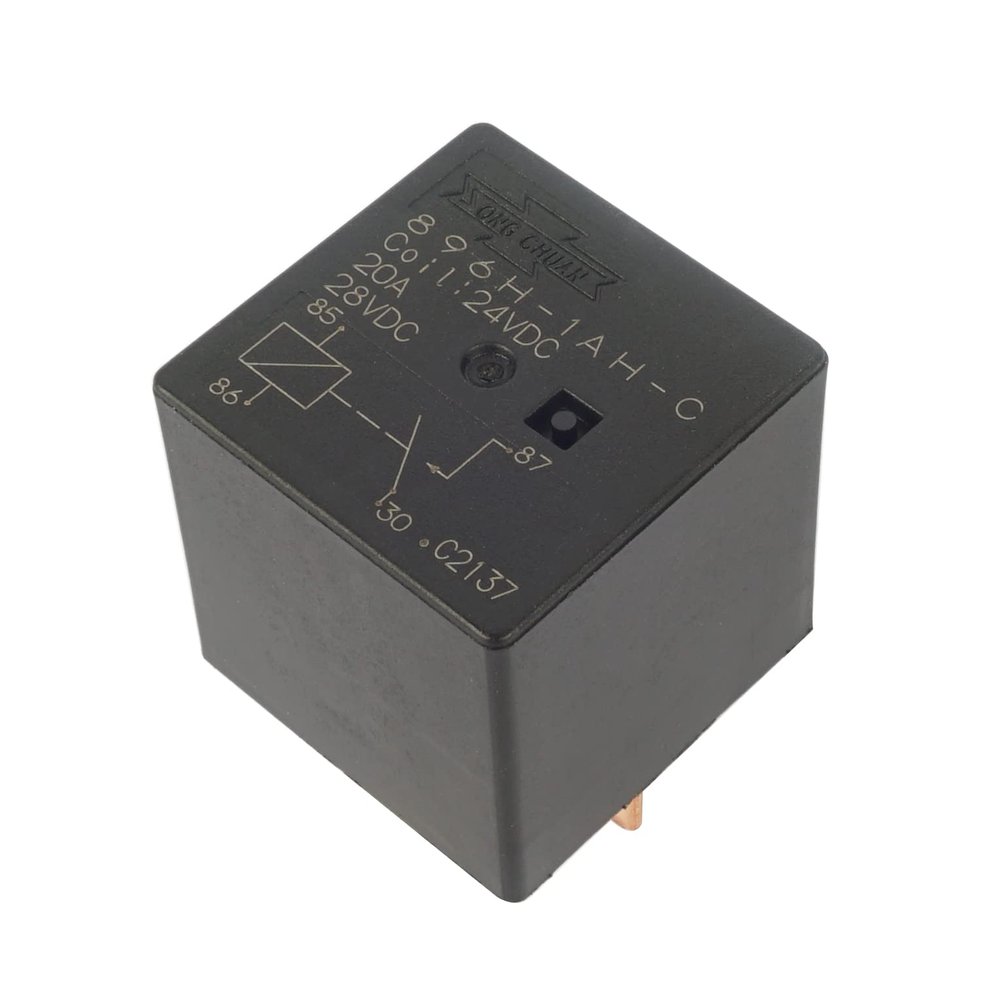

896H-1AH-C 24VDC 50A Mini ISO Automotive Relay SPNO 4Pin Single Pole Normally Open

Description

• Mini ISO automotive relay.
• High power type.Resistive load: 50A 14VDC, 20A 28VDC.
• Single pole normally open, contact material AgSnO.
• Enclosure style:Flux tight.
• Do not use the relay exceeding the coil rating, contact rating and life expectancy, or this may cause the risk of overheating.

Nominal Coil Voltage: 24 VDC
Contact Form: SPNO
Contact material: AgSnO alloy
Contact voltage drop:Typ. 50mV at 10A
Operate time : 20ms Max.
Release time : 20ms Max.
Insulation resistance:20M Min. (DC 500V)
Contact Rating:NO : NO : 50A 14VDC, 20A 28VDC
NC : 30A 14VDC, 15A 28VDC
Operating ambient temperature:-40~+125C (no freezing)
Weight: Approx.25 g
Package Content: 1 x 896H-1AH-C 24VDC

Attention:
Do not switch the contacts without any load as the contact resistance may become increased rapidly.
To assure optimum performance, avoid the relay from dropping, hitting, or other unnecessary shocks.
