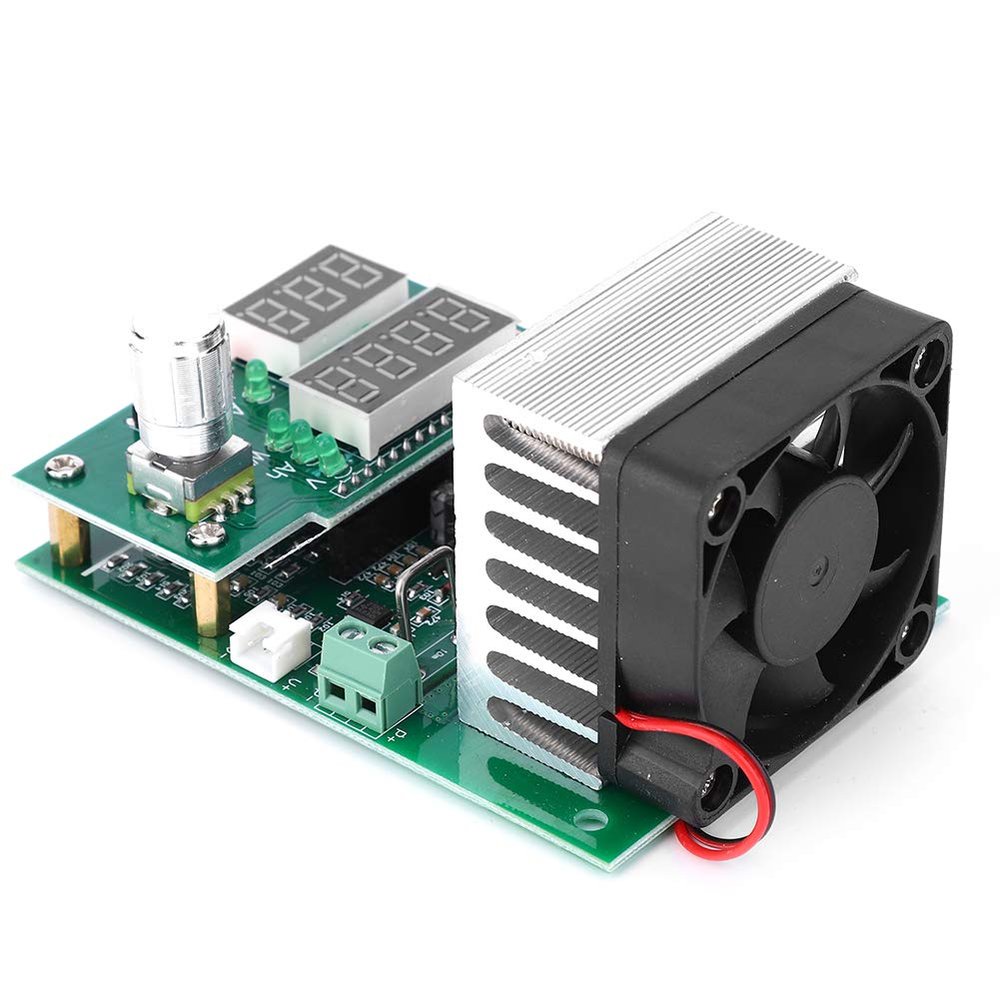

Battery Load Discharge Capacity Tester,60W 9.99A 30V Constant Current Electronic Load Aging Battery Capacity Tester Module

Description

• Temperature Control: Battery Test Module Featuring an original IR power tube and a dual NMB ball-bearing high-speed fan with stepless variable speed control, this device ensures stable operation even during prolonged use.
• Intuitive Digital Display: The classic digital tube display is not only intuitive and durable but also more to high temperatures compared to LCD screens, Battery Capacity Tester enhances visibility and usability in various working conditions.
• Operation: Equipped with a rotary encoder setting and buzzer sound prompts, this module provides a simple and efficient user experience. Its diverse functions allow for easy adjustments to suit different testing requirements.
• Automatic Memory Function: The all-parameter automatic memory function retains critical performance data, making it particularly suitable for the automatic aging of power adapters, thus streamlining your testing process.
• Precision Discharge Measurements: Electronic Load Aging Tester Offering a discharge current range from 0.20 to 9.99A with a maximum error as low as 0.7%, plus adjustable termination voltage settings ranging from 1.0V to 25.0V, this tester provides accuracy for battery capacity testing and monitoring.

1. Original IR power tube, bearing high speed fan, with temperature control stepless variable speed function, with industrial large tooth , can ensure long-term stability.
2. Classic digital tube display, intuitive and , more to high temperature than LCD.
3. encoder setting, simple and diverse functions.
4. Buzzer sound prompt, high operating experience.
5. With all-parameter automatic memory function, very suitable for assembling power adapter automatic aging cabinet.
6. Leave factory after power aging test.

Spec:
Item Type: Electronic Load Aging Battery Capacity Tester Module
Working Mode: Single mode constant current ()
Discharge Current: 0.20-9.99A, Step 0.1A or 0.01A
Maximum Discharge Current Error: 0.7%-0.01A
Maximum Error in Capacity Test: 0.5A 2.5%, 2A 1.5%, 5A and 1.2%
Termination Voltage Setting Range: 1.0-25.0V, step 1V or 0.1V
Discharge Voltage: 1.00-30.00V (subject to MOS internal and other losses, the measured input 1V can support 6-7A current, 9.99A requires the measured voltage is greater than 1.3V)
Maximum Error in Voltage Measurement: 0.8%0.02V
Maximum Power: 60W, exceed power automatically limits the maximum current (for maximum 60W, it can open 9.99A at 6V and at most 3.00A at 20V)
Highest Statistical Value of Battery Test: .9Ah or 9Wh, the value to stop the test
Positioning Hole Position: 60mmx88mm
Hole Diameter 3.2mm
Load Power Supply: 12V, current 0.5A or more
Fan Control: Intelligent fan control (Fan can automatically change the speed according to the temperature)
Function: overheat otP, instantaneous overpower oPP, overvoltage ouP, reverse connection , abnormal supply voltage .
Instructions:
1. Mode Setting (default is factory electronic load mode):
Press and hold the start and stop button (small red button) to power on the
