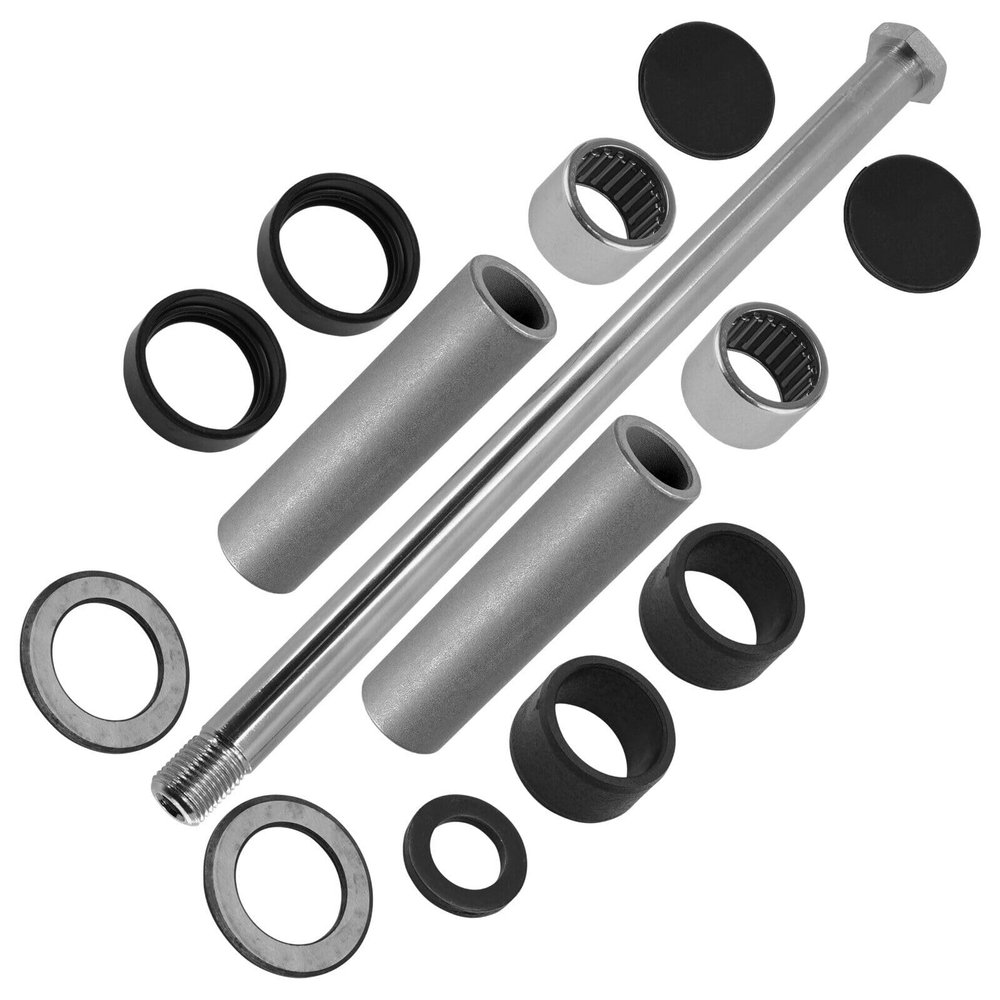

Caltric 5TG-22110-01-00 5LP-22141-00-00 Swingarm Kit Compatible with Yamaha YFZ450 2004 2005 2006 2007 2008 2009 2010-2013

Description

• Compatible With Yamaha models: Yfz450 2004-2013
• OEM Numbers: Swingarm Collars Shaft: 5137346; Bolt: 5LP-22141-00-00; Washer: 3YF-22149-00-00, 3YF-22149-00-00
• OEM Numbers: Needle Bearing: 93317-32231-00, 93317-32231-00; Bushing: 90380-22111-00; Seal: 93106-22019-00; Plug: 90338-23004-00; Plate Washer: 90201-160F6-00
• Order Includes: 2x Swingarm Collars Shaft, 1x Bolt, 2x Washer, 2x Needle Bearing, 2x Bushing, 2x Seal, 2x Plug, 1x Plate Washer
• Fitment Verification: Please review the description and images to ensure correct fit.

Compatible with Yamaha models
YFZ450 2004-2013

Part Number and Dimensions:
Pivot Shaft: 5LP-22141-00-00
Length: 11.4" | 291.6mm
Thread: M11 x 1.5

Swingarm Needle Bearing: 93317-32231-00, 93317-32231-00
Inner Diameter: 0.8" | 22.5mm
Outer Diameter: 1.1" | 28mm
Width: 0.7" | 20mm

Swingarm Collar: 90387-160W0-00
Inner Diameter: 0.63" | 16mm
Outer Diameter: 0.86" | 22mm
Length: 3.20" | 81.3mm

Swingarm Bushing: 90380-22111-00
Inner Diameter: 0.87" | 22.3mm
Outer Diameter: 1.0" | 27.7mm
Width: 0.58" | 14.9mm

Swingarm Seal: 93106-22019-00
Inner Diameter: 0.84" | 21.5mm
Outer Diameter: 1.1" | 28.2mm
Width: 0.31" | 8mm

Swingarm Washer: 90201-160F6-00
Inner Diameter: 0.64" | 16.5mm
Outer Diameter: 1.05" | 26.7mm
Width: 0.13" | 3.5mm
Swingarm Washer: 3YF-22149-00-00, 3YF-22149-00-00
Inner Diameter: 0.9" | 25.2mm
Outer Diameter: 1.4" | 37.8mm

Swingarm Plugs: 90338-23004-00
