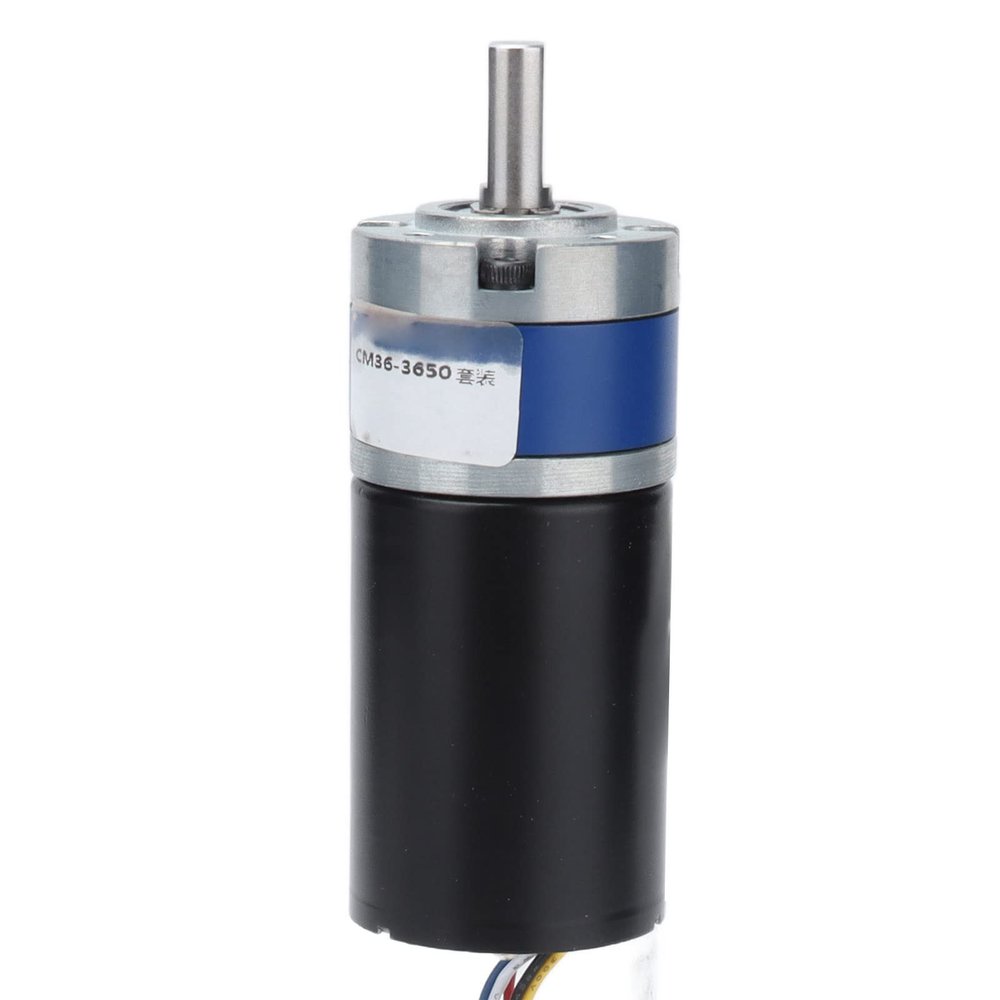

CM36-3650 DC 12V D Shaft Gear Motor Speed Reduction Planetary Brushless Gear Motor with Bracket and Controller (DC12V 32RPM),Geared Motor

Description

• D Shaped Shaft: The shaft diameter is 8mm / 0.3in,shaft length is 17.5mm / 0.7in and having been through processing, the D shaped shaft will enhance the friction to increase the torsion of the motor.
• Magnet Motor: DC12V 4A Permanent magnet motor with increased magnetic tile is not easy to demagnetize, which ensures stable working.
• All Steel Gear: The all steel gear is wear enabling long term using under high torsion and high working efficiency as well.
• Large Power: CM36-3650 Gear motor adopts DC12V drive and copper wire motor, the stator and rotor adopt copper coils with strong conductivity and reduced resistance.
• Application: Allows for application in instrumentation, digital product, medical equipment, security monitoring, smart door lock, etc.

How to Use:
Wiring :
1. Red Wire: Positive electrode 930V.
2. Black Wire: Negative electrode.
3. Blue Wire: 05V PWM speed control.
4. Yellow Wire: Motor line, 6 pulses per revolution.
5. White Wire: CW rotation when unconnected, ccw rotation when white and black are in parallel.

Specification:
Item Type: Gear Motor
Model: CM36-3650
Material: Copper + Steel + Magnet + Printed Circuit Board
Application: For instrumentation, digital product, medical equipment, security monitoring, smart door lock.
Rated Voltage: DC12V
Locked Rotor Current: 4A
Shaft Diameter: Approx. 8mm / 0.3in
Shaft Length: Approx. 17.5mm / 0.7in

Package List:
1 x Gear Motor
1 x Bracket
4 x Screw
1 x Controller

Note:
1. Do not place the product in an environment that is too corrosive, humid or in high temperature.
2. Please supply power according to the use voltage, using other voltages may cause fire and product damage.
3. It is forbidden to connect the wrong positive and negative poles of the power supply, and it is forbidden to connect the line to the electricity. The wrong connection of the motor will not be guaranteed.
