CUBELLIN 20" Front Wheel Frame Kit 48V 1000W E-Bike Hub Motor Conversion Kit with Controller Brushless Electric Bicycle Conversion Kit

Description

• HIGH SPEED: The speed of this motor can reach 500rpm and a no-load speed of 29.82mile/h, which can make your ride easier. So, you can fully enjoy the ride.
• BRUSHLESS GEARLESS MOTOR: As brushless gearless motors do not have carbon brushes, frictional resistance and heat are greatly reduced, resulting in extremely high transmission efficiency and speed. It allows for more efficient operation.
• GREAT DURABILITY: Thanks to its aluminum housing and iron hub, it is more durable and firm. It is also not easy to damage or rust under proper use.
• POWERFUL CONTROLLER: This hub motor kit is equipped with a powerful controller to ensure a high current supply. It can help you ride, double the distance, and make the riding process easier!
• COMPLETE KIT: This is a complete wheel motor kit, so the parts are more adaptable and have better performance. At the same time, it is very convenient as you do not need to buy the parts separately.

Specification
Material: Aluminium + Iron + Magnetic Steel
Color: Black
Voltage: 48V
Power: 1000w
Rated Speed: 500 rpm
Rated Torque: 45 N.M
Motor Type: Brushless Gearless Motor
Brake: 6 Screws Fixed Model Disc Brake
Corresponding Controller: 48v1000w Controller
Efficiency: 82%
Travel Speed: 48km/h Unladen(29.82mile/h)
Suspension Type: Front
Motor Diameter: 420mm/16.54in
Motor Shaft Length: 200mm/7.87in
Motor Cable Length: 100cm/3.93in
Wheel Diameter: 445mm/17.25in
Motor Width: 82mm/3.263in
Number of Hall Sensors: 3
Body Size of Magnet: 13.65x3x30mm/0.53x0.11x1.18in
Flat Fork Width Requirement: Min.135mm/Min.5.31in
Suitable Wheel Size: 50x10cm/20x4in
Packing Size: 50x50x28cm/19.68x19.68x11.02in
Gross Weight: 11.5kg/25.35lbs
Net Weight: 10kg/22lbs

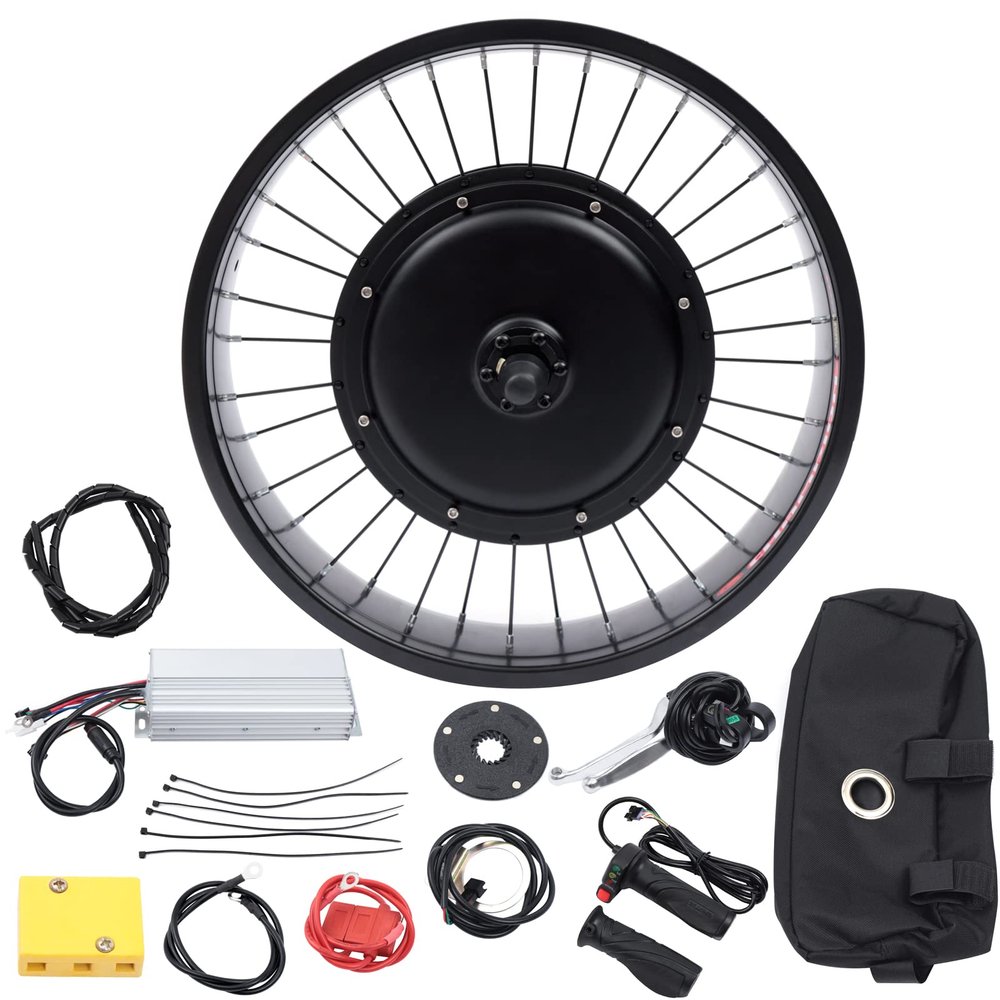

Package Included
1x Wheel Motor
1x Controller
1x Turnbuckle
2x Brake Handles
2x Handles
1x Assist Sensor
1x Controller Bag
1x English Manual
All Accessories for Installation

Notes
1.This set does not include tires and needs to be purchased by the customer. The suitable tire size is 20x4in.
2. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
