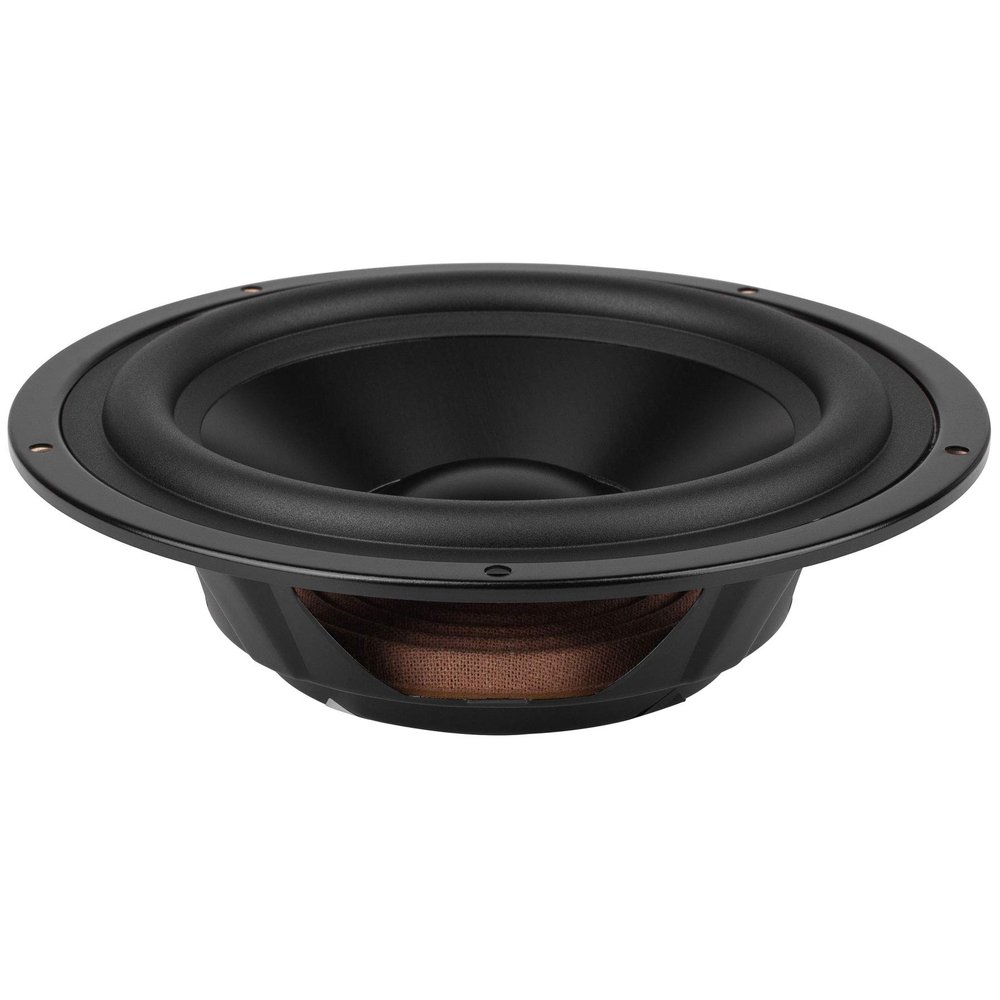

Dayton Audio DSA175-PR 6-1/2" Designer Series Aluminum Cone Passive Radiator

Description

• Perfect match for Dayton Audio's aluminum cone Designer Series drivers
• Rear mounted screw allows easy mass adjustment for custom tuning
• Cosmetic frame edge looks great even when surface mounted
• Allows tuning small enclosures lower than using conventional ports

Quick Overview The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical. Product Highlights Perfect match for Dayton Audios aluminum cone Designer Series drivers Rear mounted screw allows easy mass adjustment for custom tuning Cosmetic frame edge looks great even when surface mounted Allows tuning small enclosures lower than using conventional ports Product Manuals / Spec Sheets / Downloads Dayton Audio DSA175-PR Specification Sheet AddThis Sharing Buttons Share to FacebookFacebook Share to TwitterTwitter Share to MoreAddThis Product Description The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audios Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to portable battery powered speaker systems. Specifications: Fs: 26.8 Hz Vas: 27.1 liters Qms: 4.30 Cms: 1.15 mm/N Rms: 1.2 kg/s Mms: 30.7 g Sd: 128.7 sq. cm. Xmax: 8 mm Dimensions: Overall diameter: 175.51 mm, Cutout diameter: 144.02 mm, Depth: 46.99 mm. Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd Product Details Speaker Series Designer Series Model Number DSA175-PR List Price $19.99 Color Black Unit of Measure Each UPC 848791005053 Warranty - Parts 5 Years Warranty - Labor 5 Years Product Shipping Weight (lbs.) 0.75 Speaker Type Passive Radiator Nominal Diameter 6.50" Power Handling (max) -- Continuous Program Power -- Sensitivity -- Frequency Response -- Voice Coil Diameter -- Magnet Weight -- DC Resistance (Re) -- Voice Coil Inductance (Le) -- Resonant Frequency (Fs) 26.8 Hz Mechanical Q (Qms) 4.3 Electromagnetic Q (Qes) -- Total Q (Qts) -- Diaphragm Mass Inc. Airload (Mms) 30.7g Moving Mass Of Diaphragm (Mmd) -- Mechanical Compliance of Suspension (Cms) 1.15 mm/M Surface Area Of Cone (Sd) 128.7 cm Volume of Displacement (Vd) 102.9 cm BL Product (BL) -- Compliance Equivalent Volume (Vas) 27.1 liters Maximum Linear Excursion (Xmax) 8 mm Drivers Mechanical Losses (Rms) 1.2 kg/s Cone / Diaphragm Material Aluminum Cone Entry / Exit Diameter -- Surround Material Rubber Voice Coil Wire Material -- Voice Coil Former -- Basket/Frame Material Steel Magnet Material -- Overall Outside Diameter 175.51 mm Overall Depth 46.99 mm Baffle Cutout Diameter 144.02 mm # Mounting Holes 5 Mounting Hole Diameter -- Bolt Circle Diameter 166.12 mm Product Weight --
