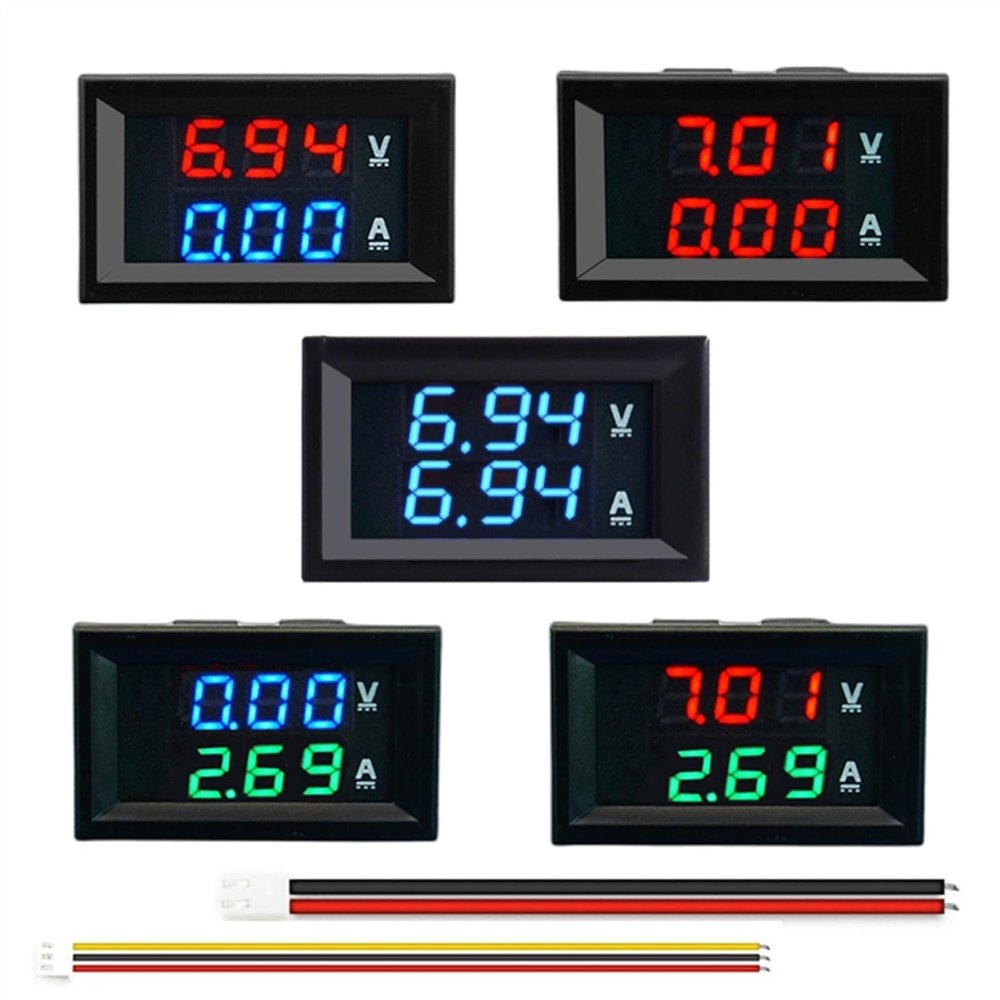

DC0-100V 10A LED Digital Voltmeter Ammeter Car Motocycle Voltage Current Meter Volt Detector Tester Monitor Panel(10A-Blue-Greem)

Description

• Ammeters
• DC0-100V 10A LED Digital Voltmeter Ammeter Car Motocycle Voltage Current Meter Volt Detector Tester Monitor Panel

Ammeters
Working voltage:4.5-30V DC
Note: The maximum input voltage can not exceed 30V, otherwise there is the danger of burning
Working current:20mA
Display: 0.28" Two color blue and red
Measuring range: DC 0-100V 0-10A
Minimum resolution (V): 0.1V
Refresh rate: 100mS / times
Measure accuracy: 1% ( 1 digit)
Minimum resolution (A): 0.01A
Operating temperature: -15 to 70 c
Working pressure: 80 to 106 kPa
size :482921 mm
The connection below 10A does not need to connect the shunt:
it can be directly connected,
respectively, AB short circuit, CD short circuit
version:
Working voltage: DC4~30V
Voltage range: DC0V~100V (0.02V jump)
Voltage error: 1V
Current range: 10A (0.03A jump)
Current error: 0.1A
Product size: 47.63x28.66x23.74mm
Installation opening: 45.11x26.00mm
To measure temperature, connect NTC sensor,
Connect the sensor to the NTC interface to measure,
The temperature and voltage are displayed alternately; the temperature measurement function is the basic function
However, the NTC sensor is an optional accessory.
Voltage measurement range: DC0.20V~9.99~10.0~100V (1V)
0~100V, the display mode below 10V is 0.00V, the voltage starts from 0.2V, the error range is 1V,
Current measurement range: 0~10A, the current starts at 0.03A, and the error is 0.1A DC0.03A~9.99A (0.1A)
Basic : Check the metter
Wiring as shown below, the meter displays the voltage, the current is 000, the product is qualified
Common power supply Test 4~30V loop wiring
The thick red wire is connected to the negative pole of the load; the thin black wire is not connected to prevent short circuit.
Independent power supply to measure 0~100V loop
The thin red and thin black wires cannot exceed 30V.
Measure the wiring method of solar charging
