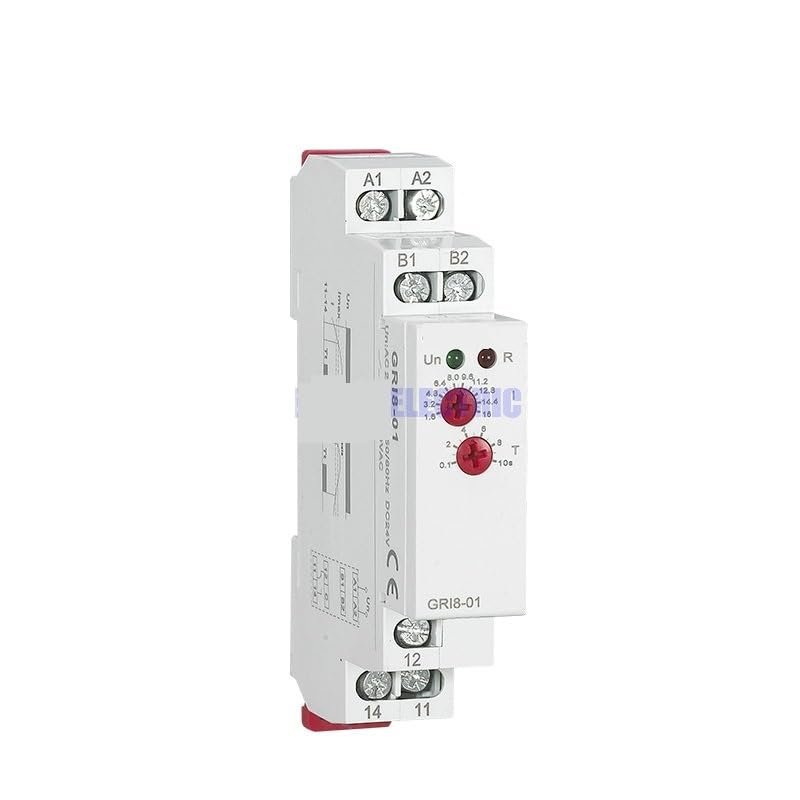

GRI8 Ajustable Over Current Protection Relay Monitoring 0.5A-16A AC24-240V DC24V Current Sensing Relay(5(0.5-5A))

Description

• Time Delay
• GRI8 Ajustable Over Current Protection Relay Monitoring 0.5A-16A AC24-240V DC24V Current Sensing Relay

Time Delay
Voltage Range
AC/DC24V-240VOR DC24V
Output
1 SPDT
SupplyTerminals
A1-A2
Supply Voltage Tolerance
-15% +10%
Time Setting
Potentionmeter
Supply Indication
GreenLED
Output Indication
Red LED
Rated Frequency
50/60HZ
Rated Current
10A/AC1
Protection Degree
IP40 for front Panel / IP20 for Terminals
Weight/pcs
0.1KG/PCS
Standard
EN 61812-1,IEC60947-5-1
Certifications
CECB TUV
Warranty/guarantee
18months
MOQ
1PC
==========
High-concerned chemical :
Power Source : AC
Theory : Time Relay
is_customized : Yes
Contact Load : Low Power
Model Number : GRI8-01
Voltage : 240V
Use : Protective
