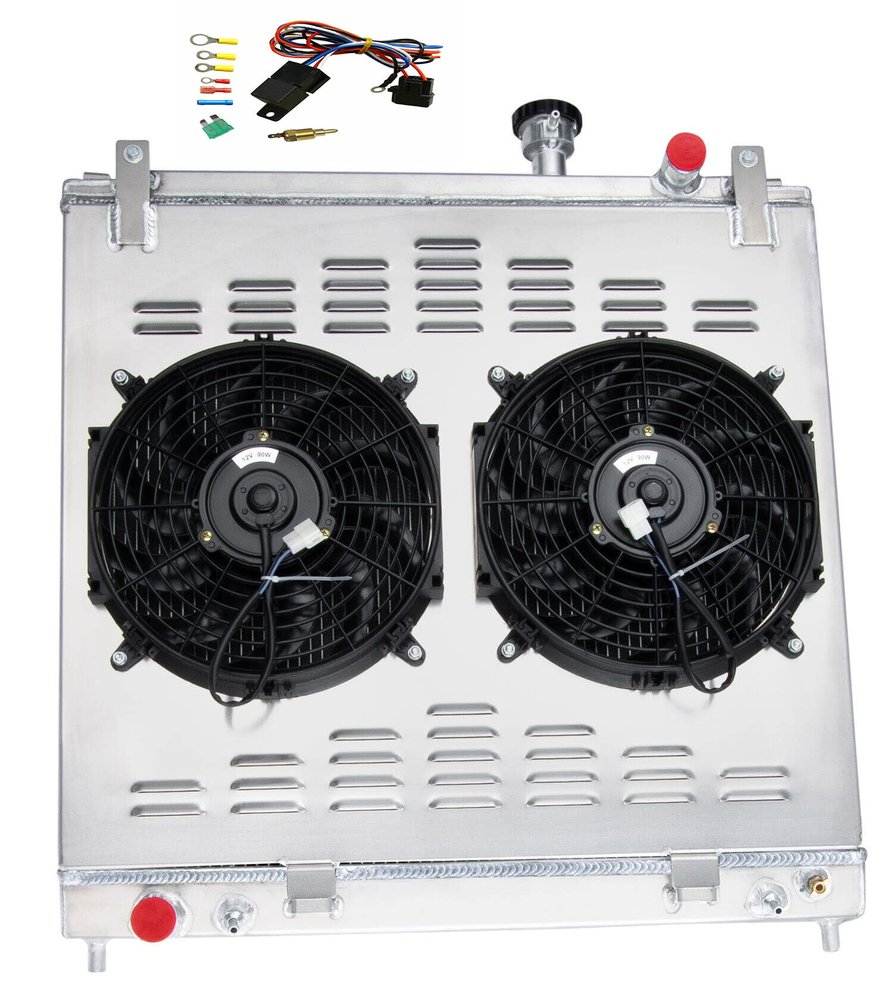

HKAUTOPART Radiator for 2004-2015 Nissan Armada Titan Pickup Truck 5.6L V8 Flex Gas & 2004-2010 Infiniti QX56 5.6L V8 Gas, 4 Row Full Aluminium Radiator + 2 x 12 Inch Fans + Shroud + Relay Kit

Description

• Core Size: 26.7'' x 23.4'' x 2.44'' Thickness, Overall Size: 31.3'' x 27.6''
• Inlet Diameter: 1.5 inch Passenger Side, Outlet Diameter: 1.5 inch Driver Side
• Transmission Oil Cooler: 26x460xM12x1.0
• 100% brazed aluminum core, TIG-welded to aluminum end tanks for superior durability and longevity
• Two 12 inch fans, maximum use of space to airflow, improving heat rejection

Radiator Specifics:
Condition: 100% Brand New
Material: Aircraft AA5052 grade aluminum tank & core
Row: 4 Row
Core Size: 26.7'' x 23.4'' x 2.44'' Thickness
Overall Size: 31.3'' x 27.6''
Inlet Diameter: 1.5 inch Passenger Side
Outlet Diameter: 1.5 inch Driver Side
Transmission Oil Cooler: 26x460xM12x1.0
CNC Precision Machined Radiator Cap
OEM style brass petcock drain

Fan Spec:
Maximum Fan CFM: 2300200
FAN Diameter: 12.05" X 12.05" X 2.5"
Number of Blades: 10 blades (Plastic)
Amp Draw: 12.70 amps
Maximum Fan RPM: 2,250 rpm

Thermostat Relay Kit Instructions:
Activates by grounding electric fans at preset temperature.
180'F/165'F turn on/off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

This Radiator Compatible with:
2005-2015 Nissan Armada 5.6L V8 Flex Gas
2004 Nissan Pathfinder 5.6L V8 Gas
2004-2015 Nissan Titan 5.6L V8 Flex Gas
2004-2010 Infiniti QX56 5.6L V8 Gas

PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit
your vehicle before you order.

Please Notes:
HKAUTOPART offering a brand new professional Aluminum Radiator at an best price.
We warranty that all our products are made of the best materials and advanced manufacture technique.
We also offer you 100% risk-free satisfaction guarantee to let you buy with confidence; If you are not
satisfied with the quality of the product, please contact us in time, we will fully-refund you after item returned.
If you have any problem(Before payment or after payment), please feel free to contact us via email.
We will try our best to solve your problem as soon as possible.

Shroud+Fans
The fan and the fan shroud effectively drive the heat over and out the engine compartment
rather than thrusting it into the front of the engine.
The fan shroud basically houses the fan blades securing it in place and keeping it from damaging
the other engine components that may disturb the smooth and even operation of the engine.
With excellent operating temperature management, allowable levels of engine temperature are stabilized.
Investing in proper maintenance though will considerably benefit the ride and driving quality in
maintaining the ideal working conditions of the engine.
