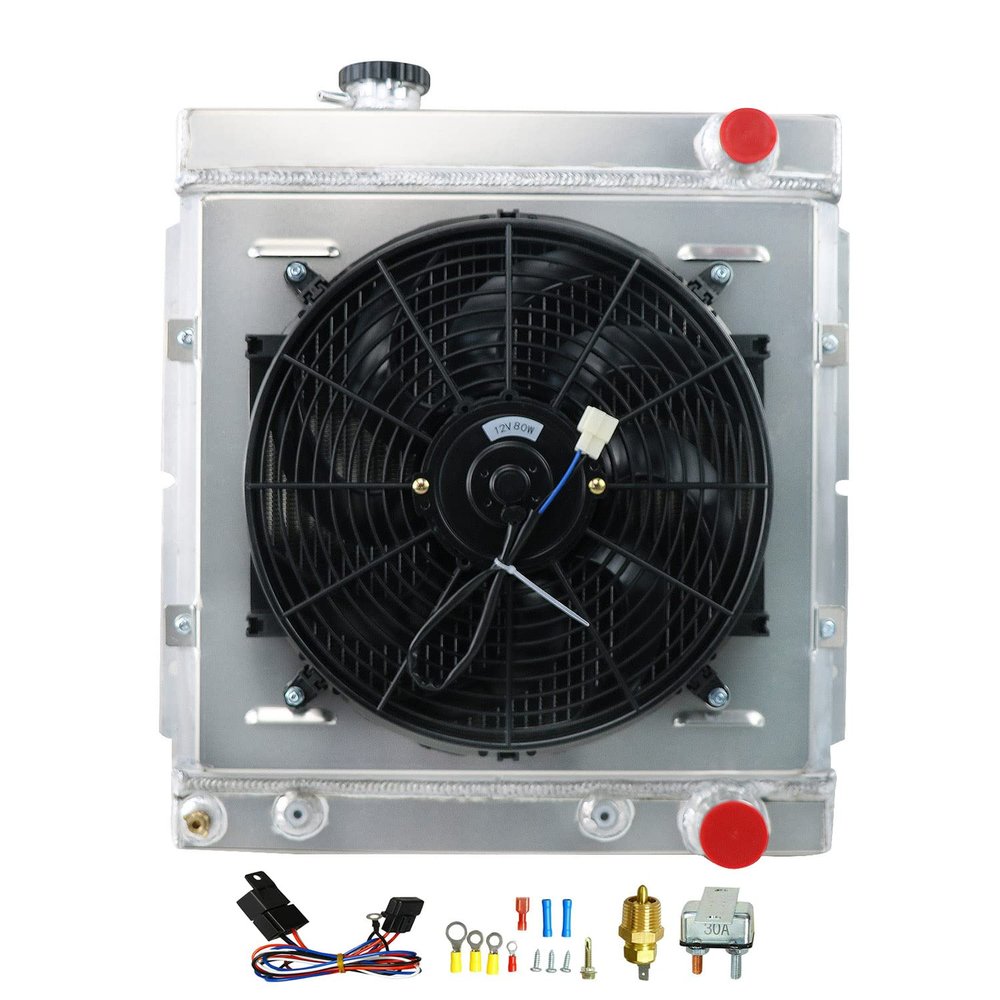

KUUHLERSAT Performance Aluminum Radiator Compatible with 1964-1966 1965 Ford Mustang V8 289 302 Windsor Engine, 4 Row Radiator + Shroud/Fan + Relay Kit

Description

• Core Size(inch): 15.95 H x 16.85 W / Overall Size(inch): 21.65 L x 19.89 W x 6.1 H / Rows: 4
• Inlet(inch): 1.5 / Outlet(inch): 1.77 / Core Thickness(inch): 2.45
• Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
• Brazed core technology to guarantee optimum performance and dependability
• Carefully crafted to exceptional OE standards for precise fit

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications

AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine

This Radiator Compatible with:
For 1964-1966 Ford Mustang (Down Flow) 260 289 V8 Engine
BOTH TOP HOSE AND BOTTOM HOSE ON PASSENGER SIDE
This radiator is easy to buy wrong, please check the Inlet & Outlet Location before purchase!

Reference OE/OEM Number:
CC259, EC259, AE259, MC259, DPI259, CUC259

Radiator Specs:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Top passenger's side: Inlet
Bottom passenger's side: Outlet
Core Material: Full Aluminum
Tank Material: All Aluminum
Flow Type: Downflow
Radiator Cap: Included
Uses 1/8" NPT OE fittings for trans cooler
OEM Style Brass Petcock Drain
CNC Machine Billet Radiator Cap
Fitment Type: Direct Replacement
Crafts: 100% Tig Welded,No Epoxy
Please Check the Size Before You Buy!

Fan Details:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 14.050
Thickness (in): 2.500
Number of Blades: 8 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:
Universal fit for any automotive vehicle and electric fan
Activates by grounding electric fans at preset temperature
180'F turn-on temperature, 165'F turn-off temperature
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included
Probe typically threads into radiator, water outlet or manifold
Thermostat Relay Kit Instructions:
RED + connect directly to battery
WHITE wire to ignition switch power source
BLACK goes to thermos switch
BLUE wire goes to the Fans
This set up will run Fans & pull air in through radiator

Product Includes:
1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 14inch Fan (Includes mounting kits)
1 X Thermostat Relay Kit

PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order
Contact us if you have any question, we are willing to solve all problems for you
