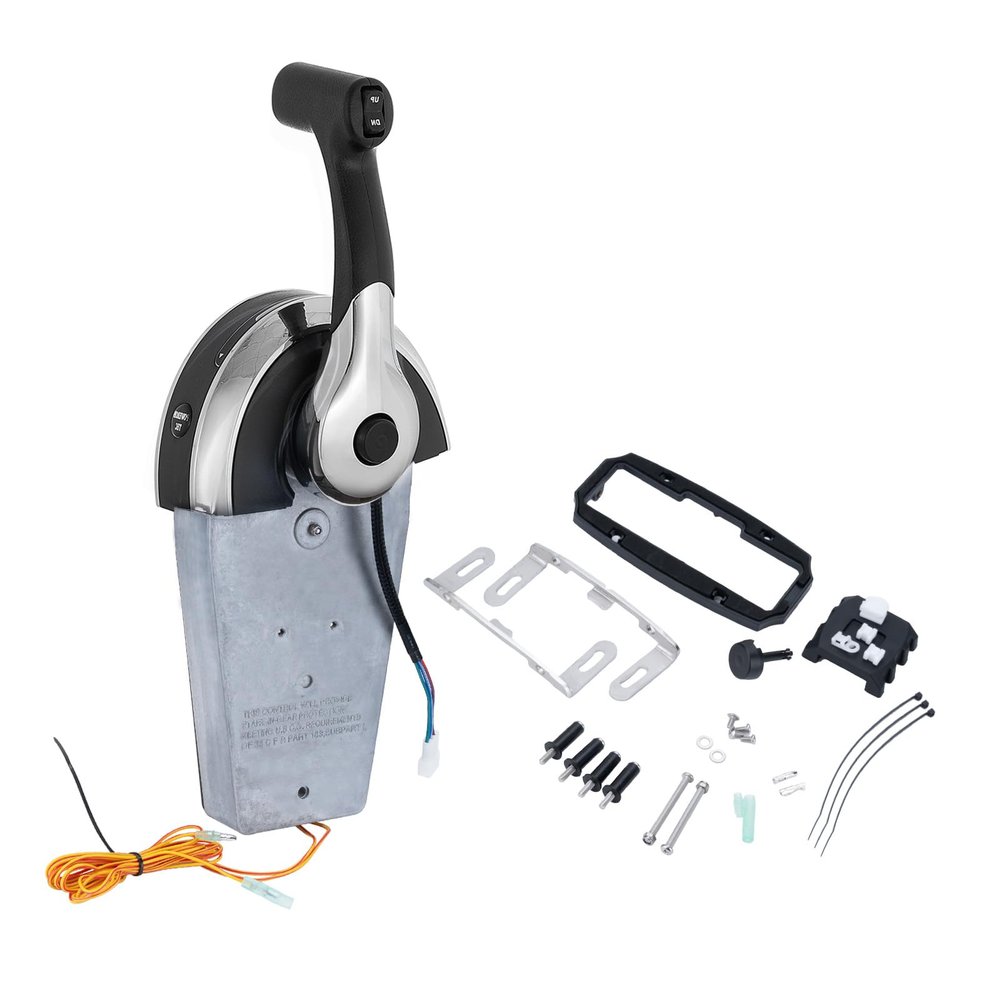

MotorCart Basics Single Outboard Remote Control Kit for Mercury 8M0059686 Top Mount Control Box Marine Boat Remote Control Box Single Binnacle Outboard Control Kit

Description

• Fast Idle Button:The fast idle button can be used to advance throttle without shifting into gear. With control lever in Neutral, push on fast idle button(cover) to open throttle for starting and warm-up.
• Power Trim & Tilt Switch: The power trim and tilt switch is attached to the control lever grip. Used to trim or raise driver unit for trallering, launching, beaching, or shallow water operation. Pushing it UP trims up and tilts up the engine and pushing it DOWN trims down and tilts down the engine.
• Friction Adjustment Nut: The nut can be adjusted to increase or decease the friction on the control handle, preventing creep on the remote control handle. By turning in or out the throttle friction screw of the remote control box, the stiffness of the control lever can be adjusted. Turning the adjusting screw to the right makes the control lever stiff to turn, and vice versa.
• Improved Throttle & Shift Control: With control handle in Neutral and fast idle feature not activated, move control handle to Forward gear or Reverse gear position. Continue movement of control handle in same direction to open (advance) throttle.
• Safety: The rope can be connected to the user's clothes or body, which can stop the ignition when the user accidentally leaves the tiller

Item Manufacturer Part Number: 8M0059686
Item Dimensions (L x W x H): 17.9 inch x 7.5 inch x 4.5 inch (45 x 19 x 11.5cm)
Item Weight: 7.5lb 3.4kg
Package Dimensions (L x W x H): 14 inch x 13.7 inch x 5.5 inch (37 x 35 x 14cm)
Assured: 1 Year
The console mount remote control is for a single outboard, and the part number is 8M0059686 8M0060783.
FeatureMade of high quality iron material, high temperature resistance for a long lifespan.
It comes with 2 ft. trim harness for easy installation.
For a single outboard and is furnished with single trim switch for trim and trailering.
With the traditional 3 blade connector.
The item requires an ignition choke assembly when you install it GEN II throttle shift cables.
Wide application: Fit for all current mariner outboards with integrated trim and newer force outboards 40 hp. For a single outboard and is furnished with single trim switch for trim and trailering.
Notice: It not suitable for GEN I throttle shift cables.
Package Included:
1 x Outboard Single Console Remote Control
1 x 2 FT trim harness
1 x instructions
