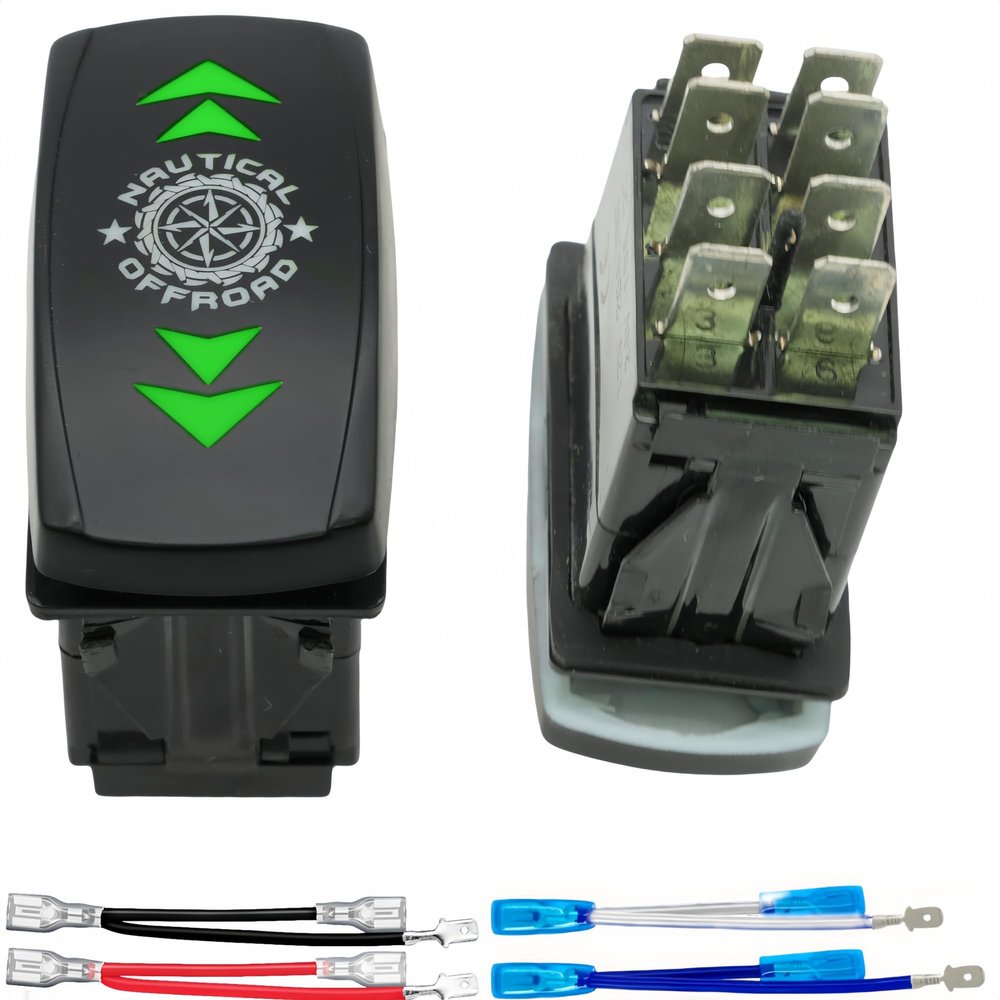

Off Road Light Rocker Switch 8 Pin 12V-24V (ON)-Off-(ON) 3 Position DPDT Momentary Switch, Marine Boat Heavy Duty Up Down Toggle Switch, Forward Reverse Arrow Rocker Switch for Automotive Car (Green)

Description

• Momentary Rocker Switch has 3 position: Momentary (ON)-OFF-(ON), The up and down position will return back to the off position after being pressed. The switch has to be hold for working. It can be horizontally or vertically mounted for rv jack, window control, turn signal light, deck lift, tilt trim, electric hoists, crane, etc
• GLOW IN THE NIGHT. 8 Pin Rocker Switch has two built-in blue LEDs which stay on when the car or boat is powered up. They can be easily found in the dark. No more fumbling around
• Forward Reverse Arrow Rocker Switch Rated at 20amp/12v DC and 10amp/24v DC; Required mounting hole size: 37.2 mm x 21.2 mm(1.46'' x 0.83''); Face Surface Size: 49mm x 25mm(1.91'' x 0.98''); Electric life: 10000 cycles. Mechanical life: 50000. Operating temperature: -4 to +140. Waterproof rating: IP66
• 3 Position rocker switch is made of high quality metal and ABS plastics(no waste material). The laser etched switch cover will not fade easily and will last a long time. We have updated the jumper wire set. It can be easily removed from the switch by pressing the clip and will not pull out the pin
• Off Road Light Rocker Switch Support reverse polarity. It can be horizontally or vertically mounted for all sorts of DC motor reversing applications, such as camper trailer jacks, RV Power Jack, winch controls for in/out operation, door opening/closing, lift gate up/down, winch on a lawn tractor, awning extend/retract, etc

8 PIN Momentary (ON)-OFF-(ON ) Rocker Switch
Forward Reverse Arrow Rocker Switch;

Up Down Toggle Switch

Rocker Switch with Jumper Wires
LED Lamp Color: Blue/Green/Orange/Red/White
Material: Superior ABS+PC;Rated at 12V 20A and 24V 10A DC.
Mounting Hole Size: 1.43"(37mm) x 0.84"(21.3mm).DPDT design,can control 2 loads.

--- Fits most cars, SUVs, ATVs, UTVs, 4X4, motorcycles, trucks, Jeep Wranglers, boats, yachts, and other off-road vehicles.
--- Mainly used together with wiring harness to control the up/down, clockwise/counterclockwise motion of DC loads
Such as Winch, Pump, Horn, Reclining Media Room Seats, Auto Bilge Pump etc.

Upper LED Illuminated
The upper light is on when the switch is pressed, and it stops working when let it off.

Lower LED Illuminated
The lower light is on when you press the switch down, and it will return off position when you remove your finger.

Installation on switch holder
8 pin rocker switch can be installed on rocker switch holder housing for better using effect.
Installation on switch panel

It can also be replaced to any defective 2-10 PIN switches. Convenient and cost-effective.

Package included :
1 X 8 pin rocker switch,
1 X jumper wires set,
1 X wiring diagram.
