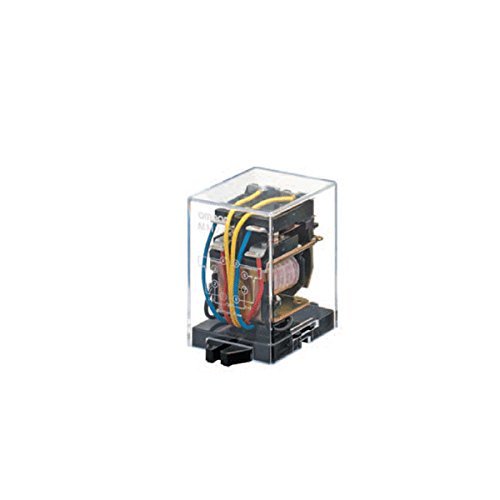

OMRON MM2XP AC200V Power Relay (Cased coils)(Plug-in terminals)(DC-Switching)(DP) NN

Description

• Products that we ship is a Japan version. There may be only a Japanese manual, if manufacture produced only for using in Japan. Even if you are injured using this, we shall not be responsible for any loss, damages and troubles. Since the shipment from Japan, it will take time to delivery. We have the case that we cannot ship depending on a delivery place.
• It is not in stock or the case of shipping in the next business day after, we will contact you by e-mail. 9:00 to 18:00(JST): Business hours (Saturday and Sunday, Spring holidays , Summer holidays, the New Year will be closed)

Coil Ratings
[Rated Voltage(V)]AC200/(220)
[Rated current(mA)]
50Hz 20.5
60Hz 17.5/20
[Coil resistance(Ohm)]1,540
[Contact type]Single
[Contact material]Ag
[Rated load]
Resistive load
(cos phi = 1)7 A at 110 VAC
Inductive load
(L/R=7 ms)6A at 110VDC
[Rated carry current]7.5A
[Max. switching voltage]250 VAC,250 VDC
[Max. switching current]7.5 A
[Max. switching power
(reference value)]
Resistive load
(cos phi = 1)800W at 20VA
Inductive load
(L/R=7 ms)660W at 20VA
[Minimum permissible load
(reference value)]5 VDC 10 mA
