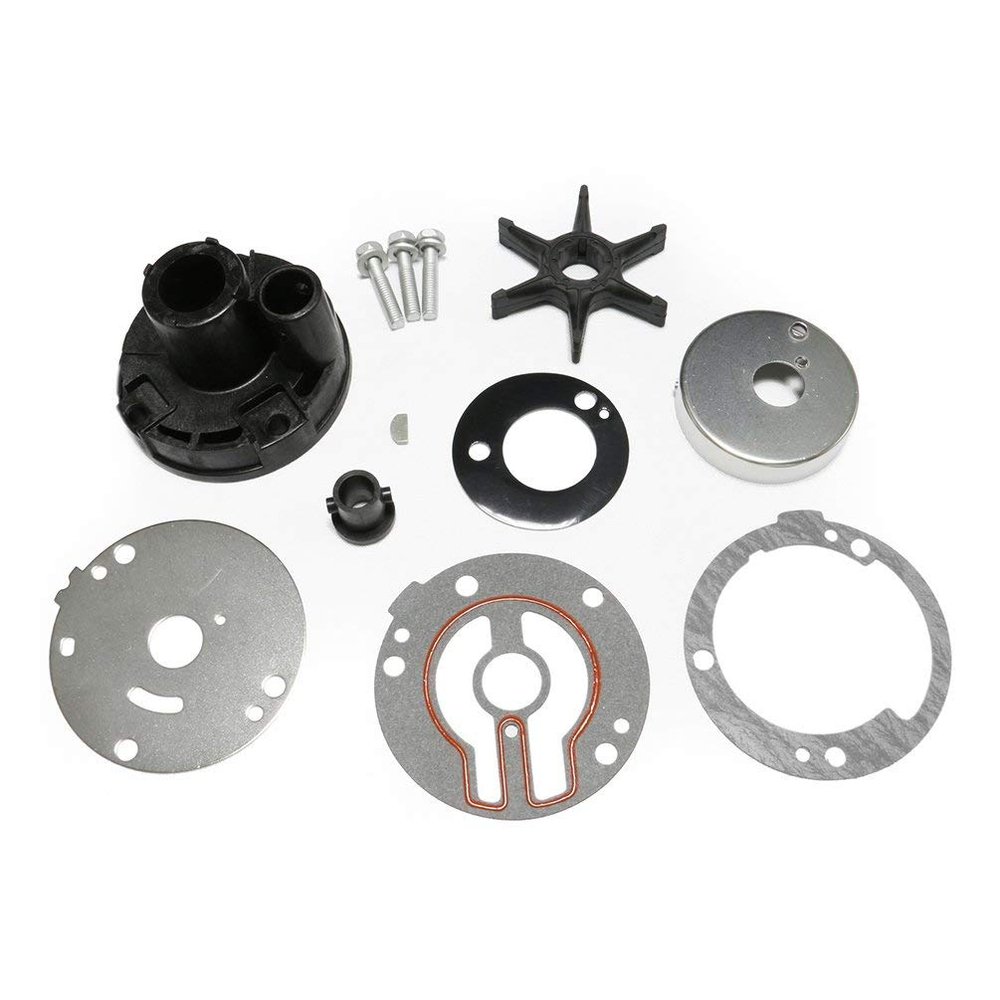

PumuHo Outboard Water Pump Repair Kits for Yamaha 25HP 30HP Outboard Engine Sierra 18-3427 689-W0078-A6

Description

• This water pump impeller repair or service kit for Yamaha outboards OEM p/n 689-W0078-A6. it is very important to check your boat motor part number before purchase. please message us engine year and horsepower if you are not sure.
• Water pump rebuild kit replacement for Yamaha outboard 25HP 30HP boat motor parts replacement cooling system. more detailed information please see description below.
• Contains: 18-3067 - Impeller - 689-44352-02-00 - 1 18-3294 - Key, Impeller - 63V-44338-00-00 - 1 NSS - Gasket, Water Pump - 689-44316-A0-00 - 1 NSS - Plate, Wear - 689-44323-03-00 - 1 NSS - Gasket, Water Pump - 689-44324-A0-00 - 1 NSS - Cup, Insert - 689-44352-02-00 - 1 NSS - Housing, Water Pump - 689-44311-03-00 - 1 NSS - Washer, Bolt - 90209-06M04-00 - 3 NSS - Bolt 90101-06M56-00 - 3 NSS - Grommet - 689-44366-00-00 - 1
• Installation Instructions: Lubricate with silicone grease, glycerine or dish soap when installing. (Not included).
• Find the correct impeller kits for your boat motor, it is VERY IMPORTANT to check your outboard model or s/n before purchase. you can leave us messages e.g. your boat engine model, horsepower or year if you're not sure. were pleasure to help you.

Description:

Engine Position: Outboard

Replaces Part Number: 689-W0078-A6 689-W0078-06 18-3427

Engine: 25HP 30HP

Contains:

18-3067 - Impeller - 689-44352-02-00 - 1

18-3294 - Key, Impeller - 63V-44338-00-00 - 1

NSS - Gasket, Water Pump - 689-44316-A0-00 - 1

NSS - Plate, Wear - 689-44323-03-00 - 1

NSS - Gasket, Water Pump - 689-44324-A0-00 - 1

NSS - Cup, Insert - 689-44352-02-00 - 1

NSS - Housing, Water Pump - 689-44311-03-00 - 1

NSS - Washer, Bolt - 90209-06M04-00 - 3

NSS - Bolt 90101-06M56-00 - 3

NSS - Grommet - 689-44366-00-00 - 1If you are unsure, please provide your engine serial number.

Application:

This 689-W0078-A6-00 WATER PUMP REPAIR KIT fits Yamaha the following models and components:

25HP C25ELRV Repair Kit 2

25HP C25ELRU Repair Kit 2

25HP C25ELHU Repair Kit 2

25HP C25ELHV Repair Kit 2

25HP C25MSHV Repair Kit 2

25HP C25MSHU Repair Kit 2

25HP C25MLHU Repair Kit 2

25HP C25MLHV Repair Kit 2

1996 C25MSHU Repair Kit 2

1996 C25MLHU Repair Kit 2

1996 C25ELRU Repair Kit 2

1996 C25ELHU Repair Kit 2

1997 C25ELRV Repair Kit 2

1997 C25ELHV Repair Kit 2

1997 C25MSHV Repair Kit 2

1997 C25MLHV Repair Kit 2
