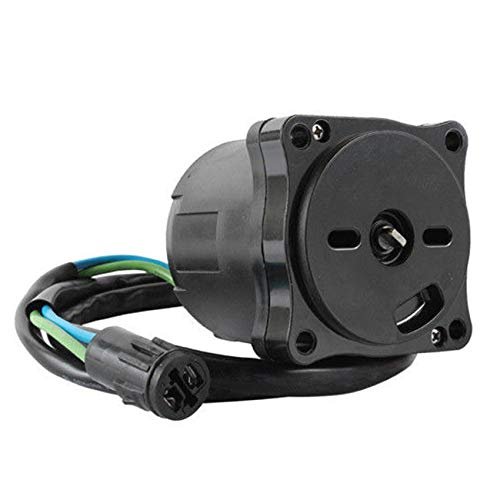

RAREELECTRICAL 12V Tilt Trim Motor Compatible With 2002-2018 Honda Bf200 Bf225 175-225Hp V6 4-Stroke Outboard 2-Wire Keyed Shaft 36120-Zy3-013 18-6742 Bf200a2 Bf200a3 Bf200a6 Bf200ak2 Bf225a2 Bf225a3

Description

• Compatible with HONDA. Please verify your OEM part number from your original unit to help ensure fitment.
• Replaces: Oem Part Numbers: / Honda: 36120-Zy3-013 / 36120Zy3013 / Honda: 36120-Zy3-023 / 36120Zy3023 / Honda: 36120-Zx2-013 / 36120Zx2013 / Arco Marine: 6234 / Sierra: 18-6742 / Specifications: / Type: Power Tilt Trim Motor / Voltage: 12V Dc / Rotation: Reversible / Connection: 2-Wire, 39" Cord Length, Round Plug Connector / Shaft: 2.3Mm Keyed D-Shaft / Housing Od: 3.091" (78.5Mm) / Shaft Od: 0.315" (8Mm) / Overall Length: 4.429" (112.5Mm) /
• Applications: Honda Bf175 175Hp V6 4-Stroke Outboard: / Bf175a3 175Hp V6 4-Stroke Vtec (2003-2007) / Bf175a6 175Hp V6 4-Stroke Vtec (2003-2007) / Bf175ak1 175Hp V6 4-Stroke Vtec (2008-2014) / Bf175ak2 175Hp V6 4-Stroke Vtec (2012-2018) / Honda Bf200 200Hp V6 4-Stroke Outboard (2002-2018): / Bf200a2 200Hp V6 4-Stroke Vtec (2002-2007) / Bf200a3 200Hp V6 4-Stroke Vtec (2002-2007) / Bf200a6 200Hp V6 4-Stroke Vtec (2002-2007) / Bf200ak2 200Hp V6 4-Stroke Vtec (2008-2018)
• Applications: (2008-2018) / / Honda Bf225 225Hp V6 4-Stroke Outboard (2002-2018): / Bf225a2 225Hp V6 4-Stroke Vtec (2002-2007) / Bf225a3 225Hp V6 4-Stroke Vtec (2002-2007) / Bf225a6 225Hp V6 4-Stroke Vtec (2002-2007) / Bf225ak1 225Hp V6 4-Stroke Vtec (2008-2014) / Bf225ak2 225Hp V6 4-Stroke Vtec (2012-2018) / ...
• Trim Motor - Voltage: 12V Rotation: Reversible Shaft Specifications: Keyed Shaft Source: Aftermarket

HONDA BF200 200HP V6 4-STROKE OUTBOARD (2002-2018):
BF200A2 200HP V6 VTEC (2002-2007)
BF200A3 200HP V6 VTEC (2002-2007)
BF200A6 200HP V6 VTEC (2002-2007)
BF200AK2 200HP V6 VTEC (2008-2018)

HONDA BF225 225HP V6 4-STROKE OUTBOARD (2002-2018):
BF225A2 225HP V6 VTEC (2002-2007)
BF225A3 225HP V6 VTEC (2002-2007)
BF225A6 225HP V6 VTEC (2002-2007)
BF225AK1 225HP V6 VTEC (2008-2014)
BF225AK2 225HP V6 VTEC (2012-2018)

HONDA BF175 175HP V6 4-STROKE OUTBOARD:
BF175A3/A6 175HP V6 VTEC (2003-2007)
BF175AK1/AK2 175HP V6 VTEC (2008-2018)

OEM PART NUMBERS:
Honda: 36120-ZY3-013 / 36120ZY3013
Honda: 36120-ZY3-023 / 36120ZY3023
Honda: 36120-ZX2-013 / 36120ZX2013
Arco Marine: 6234 / Sierra: 18-6742

HONDA BF200/BF225 V6 OUTBOARD - 12V Power Tilt Trim Motor:
New 12-volt power tilt trim motor for Honda 175-225HP V6 4-stroke VTEC outboard engines. Covers BF200 and BF225 models from 2002-2018, plus all BF175 variants. Features 2-wire connection with 39-inch cord and round plug connector, keyed D-shaft coupling, and reversible rotation. Housing OD 3.091", shaft OD 8mm, overall length 4.429". Direct OEM replacement with bolt-on installation.

IMPORTANT: Verify OEM part number before ordering to ensure proper fitment.
