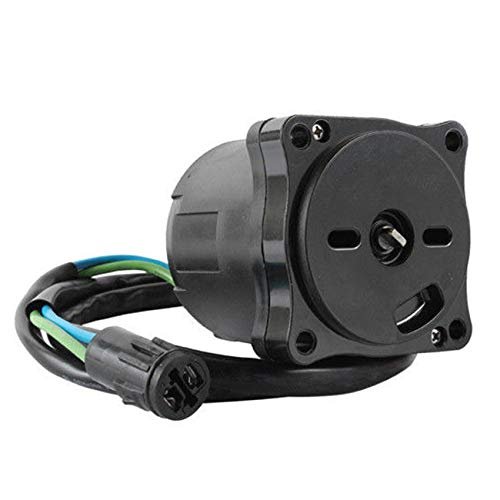

RAREELECTRICAL Power Tilt Trim Motor Compatible With Honda Bf175 Bf200 Bf225 175Hp 200Hp 225Hp V6 4-Stroke Outboard 36120-Zy3-023 36120-Zx2-013 Arco 6234 Bf175a3 Bf175a6 Bf175ak1 Bf175ak2 Bf200a2

Description

• Compatible with HONDA. Please verify your OEM part number from your original unit to help ensure fitment.
• Replaces: Oem Part Numbers: / Honda: 36120-Zy3-013 / 36120Zy3013 / Honda: 36120-Zy3-023 / 36120Zy3023 / Honda: 36120-Zx2-013 / 36120Zx2013 / Arco Marine: 6234 / Sierra: 18-6742 / Specifications: / Type: Power Tilt Trim Motor / Voltage: 12V Dc / Rotation: Reversible / Connection: 2-Wire, 39" Cord Length, Round Plug Connector / Shaft: 2.3Mm Keyed D-Shaft / Housing Od: 3.091" (78.5Mm) / Shaft Od: 0.315" (8Mm) / Overall Length: 4.429" (112.5Mm) /
• Applications: Honda Bf175 175Hp V6 4-Stroke Outboard: / Bf175a3 175Hp V6 4-Stroke Vtec (2003-2007) / Bf175a6 175Hp V6 4-Stroke Vtec (2003-2007) / Bf175ak1 175Hp V6 4-Stroke Vtec (2008-2014) / Bf175ak2 175Hp V6 4-Stroke Vtec (2012-2018) / Honda Bf200 200Hp V6 4-Stroke Outboard (2002-2018): / Bf200a2 200Hp V6 4-Stroke Vtec (2002-2007) / Bf200a3 200Hp V6 4-Stroke Vtec (2002-2007) / Bf200a6 200Hp V6 4-Stroke Vtec (2002-2007) / Bf200ak2 200Hp V6 4-Stroke Vtec (2008-2018)
• Applications: (2008-2018) / / Honda Bf225 225Hp V6 4-Stroke Outboard (2002-2018): / Bf225a2 225Hp V6 4-Stroke Vtec (2002-2007) / Bf225a3 225Hp V6 4-Stroke Vtec (2002-2007) / Bf225a6 225Hp V6 4-Stroke Vtec (2002-2007) / Bf225ak1 225Hp V6 4-Stroke Vtec (2008-2014) / Bf225ak2 225Hp V6 4-Stroke Vtec (2012-2018) / ...
• Trim Motor - Voltage: 12V Rotation: Reversible Shaft Specifications: Keyed Shaft Source: Aftermarket

COMPATIBLE WITH: HONDA: 36120-ZY3-013 36120ZY3013 REPLACES: TRM0104 6234 ITEM DESCRIPTION: TILT TRIM STARTER MOTOR UNIT TYPE: HONDA VOLTAGE: 12 ROTATION: REVERSIBLE LENGTH: 4.429IN / 112.5MM HOUSING OD: 3.091IN / 78.5MM SHAFT OD: 0.315IN / 8MM SHAFT SPECIFICATIONS: 2.3MM KEYED CURENT TYPE: DC SPECIFICATIONS: 2 WIRE SPECIFICATIONS: 39" CORD LENGTH WEIGHT: 3.01 LBS / 1.37 KG APPLICATIONS: PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT. HONDA MARINE ENGINE BF200 2002-2018 HONDA MARINE ENGINE BF225 2002-2018
