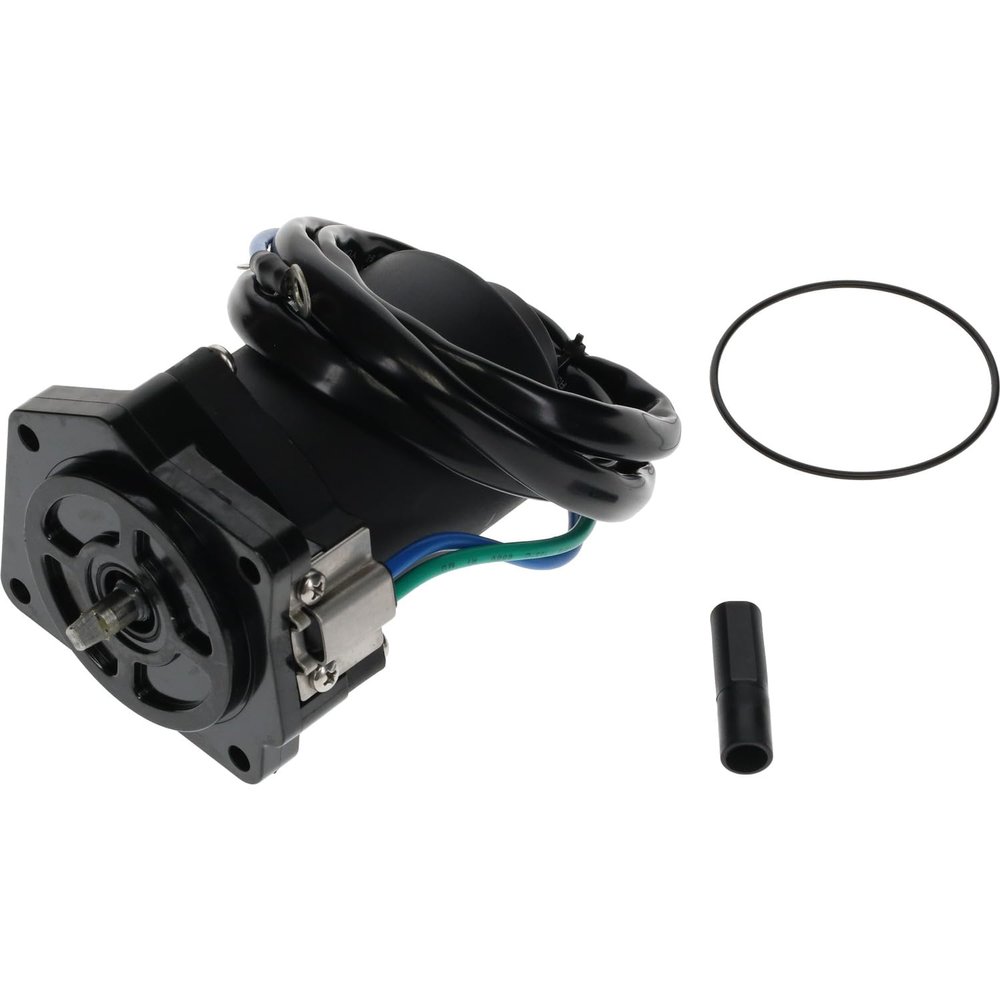

RAREELECTRICAL Tilt Trim Motor Compatible With Yamaha F75tlr F90tjr F90tlr F90txr 2005-2012 75Hp 90Hp Outboard 6D8-43880-00-00 6D8-43880-09-00 12V Reversible

Description

• Compatible with YAMAHA. Please verify your OEM part number from your original unit to help ensure fitment.
• Replaces: Yamaha Oem Part Numbers: / 6D8-43880-00-00 / 6D8438800000 / 6D8-43880-01-00 / 6D8438800100 / 6D8-43880-09-00 / 6D8438800900 / 6D8-43880-00 / 6D8-43880-01 / 6D8-43880-09 / Aftermarket Part Numbers: / Pt626nm (Api Marine) / Pt627nm (Api Marine) / 6258 (Arco Marine) / 10886 / 10886N (Lester) / 430-22118 / Trm0092 / Trm0093 / Ph200-T068 (Protorque) / Ph200-T059 (Protorque) / 107-170 (Pic) / Specifications: / Voltage: 12V Dc / Rotation:
• Applications: Yamaha Outboard Motors - 4-Stroke: / F75 Series (75Hp): / Yamaha F75 75Hp - 2005, 2006, 2007, 2008 / Yamaha F75tlr 75Hp - 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 / Yamaha F75la 75Hp - 2013, 2014, 2015, 2016, 2017, 2018 / F90 Series (90Hp): / Yamaha F90 90Hp - 2005, 2006, 2007, 2008 / Yamaha F90tjr 90Hp - 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 / Yamaha F90tlr 90Hp - 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 / Yamaha F90txr 90Hp -
• Applications: Yamaha F90txr 90Hp - 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 / Yamaha F90ja 90Hp - 2013, 2014, 2015, 2016, 2017, 2018 / Yamaha F90la 90Hp - 2013, 2014, 2015, 2016, 2017, 2018 / Yamaha F90xa 90Hp - 2013, 2014, 2015, 2016, 2017, 2018 / / Engine Specifications: / Engine Type: 4-Stroke / Power Output: 75Hp / 90Hp / Displacement: 97 Ci (F75tlr) / / Notes: / Voltage: 12V Dc / Rotation: Reversible / 4-Bolt Mount / 2-Wire...
• Trim Motor - Voltage: 12V Source: Aftermarket

Tilt Trim Motor - Yamaha 4-Stroke Outboard Engine
Premium quality tilt trim motor engineered for Yamaha F75 and F90 series 4-stroke outboard engines. Features short shaft design (5/8") with supplied coupler for long shaft applications. 4-bolt mount with O-ring included for proper seal. Direct replacement for 2005-2018 models.

YAMAHA OEM PART NUMBERS:
6D8-43880-00-00 / 6D8438800000
6D8-43880-01-00 / 6D8438800100
6D8-43880-09-00 / 6D8438800900

AFTERMARKET PART NUMBERS:
PT626NM / PT627NM (API Marine)
6258 (ARCO Marine)
10886 / 10886N (Lester)
430-22118
TRM0092 / TRM0093
PH200-T068 / PH200-T059 (Protorque)
107-170 (PIC)

SPECIFICATIONS:
Voltage: 12V DC
Rotation: Reversible
Outer Diameter: 2.563" / 65.1mm
Shaft Diameter: 0.311" / 7.9mm
Length: 5.496" / 139.6mm
Shaft: 3.4mm Keyed
Mount: 4-Bolt
Terminals: 2-Wire Connection
Weight: 3.43 lbs / 1.56 kg
Includes: O-Ring and Coupler

FITS YAMAHA OUTBOARDS:
F75TLR 75HP - 2005-2012
F75LA 75HP - 2013-2018
F90TJR / F90TLR / F90TXR 90HP - 2005-2012
F90JA / F90LA / F90XA 90HP - 2013-2018

NOTE: Short shaft 5/8" motor. OE shaft length may vary - use supplied coupler if longer shaft is needed.

Verify OEM part number from your original unit before ordering.
