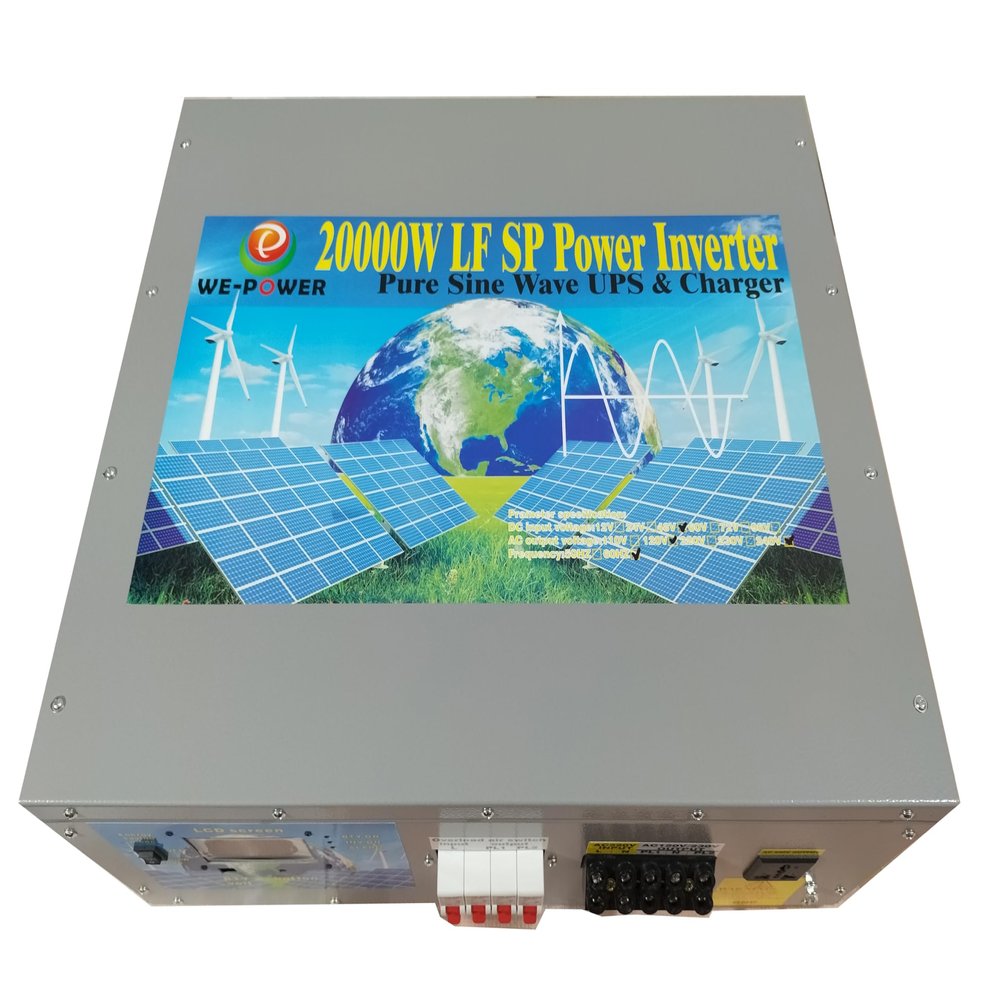

RuiCheng 80000 Watt Peak 20000 Watt Low Frequency Split Phase Pure Sine Wave Power Inverter 24 V Dc Input / 110 V,220 V Ac Output 60 Hz Frequency with 110V Charger & 3.5" LCD Display Box & ATS & UPS

Description

• With 110V Charger & 3.5" LCD Display BOX & ATS & UPS
• 3 ac output socket, output is 110v & 220V, also we have hard wire terminal-----L1, N, L2, L1+L2=220V, L1+N=110V, L2+N=110V Note: can not L1+N+L2 at the same time!!!
• AC 110V: 10000W continue power, 40000w peak power,AC 220V: 10000W continue power, 40000w peak power
• this item is 24V DC Input, usually when you use big power,the best Input voltage is 24V,because the amp will become small, will not cause the inverter getting so hot, if inverter not hot, the efficiency will arrive 2-3%,means can go to 92-94%, also your battery bank can keep very good performance! watt=volt x amp, once your voltage getting high, your amp will become small.
• this inverter is LF inverter, we called low frequency, with big transformer inside(around 12kgs),this design just for the heavy duty appliance, like pump, motor, freezer, grinder, microwave, heater.

80000 Watt Peak 20000 Watt Low Frequency Split Phase Pure Sine Wave Power Inverter 24 V Dc Input / 110 V,220 V Ac Output 60 Hz Frequency With 110V Charger & 3.5" LCD Display BOX & ATS & UPS

AC 110V: 10000W continue power, 40000w peak power

AC 220V: 10000W continue power, 40000w peak power

DC Input Voltage: 24V

AC Output Voltage: 110V 60Hz & 220V 60Hz

AC 110V: 10000W continue power, 40000w peak power

AC 220V: 10000W continue power, 40000w peak power

Dimension(L*W*H/inch): 27.5X15.5X8

Weight(pound):118

Regulation: 5%

Frequency: 60HZ3%

Efficiency: 90%

Output Wave Form: Pure Sine Wave

Temperature Protection: 70C

Input Low Voltage Alarm & shutdown: 21V

Input High Voltage Alarm & shutdown: 28V

Certificate: CE

HF power inverter have limit for runing appliances with motors,engines,special light and TV. LF power inverter available for sensitive load,accept generator's energy output,high power factor,and follow our warning label ,it would not have any problems.

*If want to run the machine like Washing machine ,Dish-washing.machine,Refrigerator,Water pump, Coffee grinder,Kettle,Engine, Motor,Drill,Microwave oven,Heater,Vacuum Cleaner,AirConditioner,Hair Dryer, Air pump which have a motor,any heavy power appliances,then need to use more than 15 times to 20. times power of them, because they all have instantaneous power when turn on,pls ask us before using, as some heavy power tools, it's 10 to 20 times power than the appliance mentioned.

*Note: As this unit could have parts loosing caused during transportation, so please DO check item carefully before testing. If the inverter is damaged by the courier seriously please report this to the courier right away.
