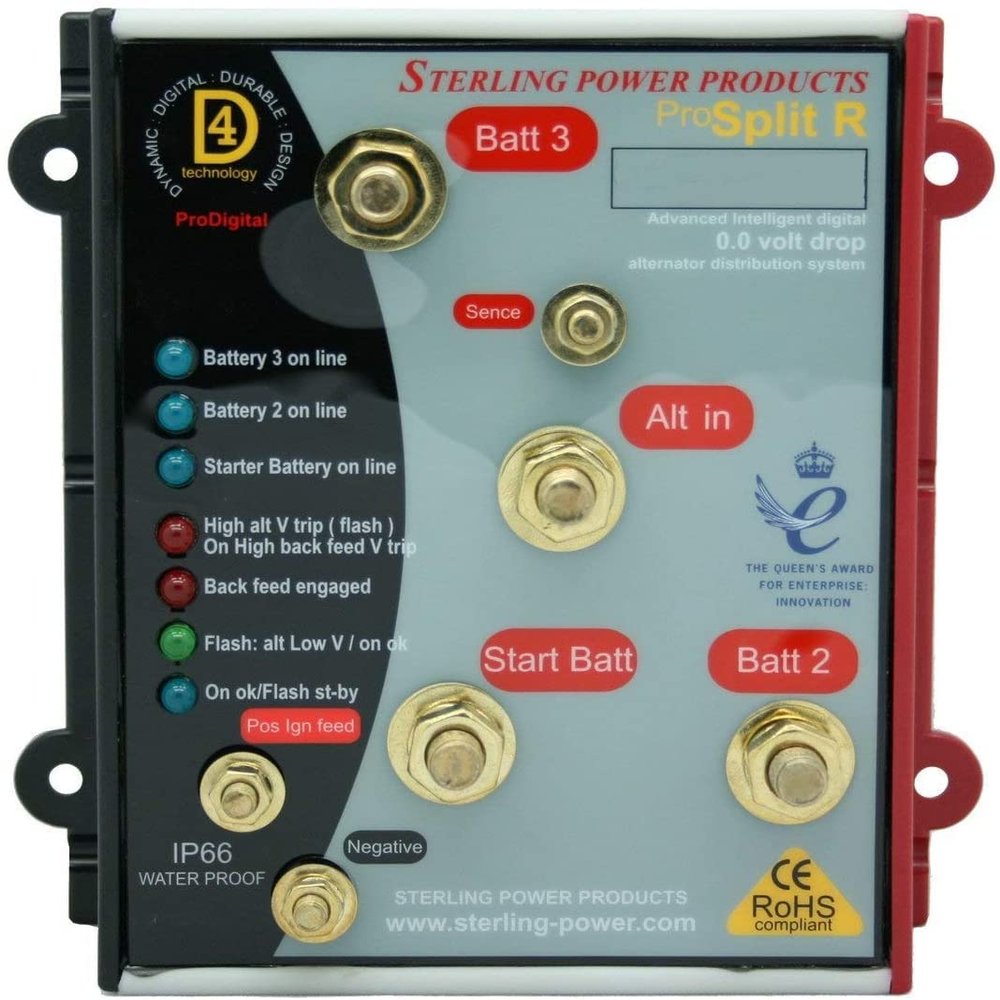

Sterling Power USA Pro Split R - Alternator 0.0V Drop Splitting System 1 in 3 Out 120A 12V

Description

• Isolates the battery bank(s): The unit isolates when there is any attempt to back feed the power from the full battery bank to a more demanding battery.
• Overload Design: The model rated for 180A is actually continually rated for 240A with overload in excess of 2000A.
• Distributes the most power: to the battery bank which demands it
• High Safety Elements Built In: As much safety and control is built in as possible to protect your electrical system and to ensure available power is directed to where it is required most
• Faster Battery Charging: 0.0V drop allows for a much faster charge. Additionally, once the Pro Split R is happy with the charge state of the starter battery the focus of the charge is directed to the larger domestic/house bank. This ensures a one on one charging experience between the alternator and house. N.B. The starter battery is always monitored and then prioritised if needs be.
• Micro Processor Controlled: All batteries are charged in conjunction with each other and back feed under high load conditions is prevented. The system also has the ability to disconnect the alternator and individual battery bank outputs in the case of problems caused by the alternator to other devices.
• Comprehensive L.E.D. display: that shows which channels are in use and which are not.
• 0.01 voltage drop through the current range : This negligible voltage drop is far superior in performance in comparison to the old diodes based splitting systems which suffered from a far greater voltage drop.
• Alternator Regulators: The sense stud on the Pro Split R allows seamless integration of Sterlings alternator regulator with this 0.0V splitter resulting in the ultimate split charging device.
• Backfeed protected: If there is a defective battery charger on one battery bank trying to back feed into another battery bank, the unit would disconnect that battery bank to save others.

The Pro Split R is a 0.0V drop alternator splitting system. It is the successor to the old diode based splitting systems which induced large voltage drops at high current. The newer, much more intelligent, Pro Split R selects a battery banks and isolates the other battery banks to prevent their voltage misleading the alternators regulator (assuming regulator is connected). This allows the regulator to focus on the correct battery and can maximise the alternators potential. Then, at a specific level, the other battery banks are charged and finally all charged together. The charging performance can be further enhanced with the use of an Advanced Alternator Regulator
