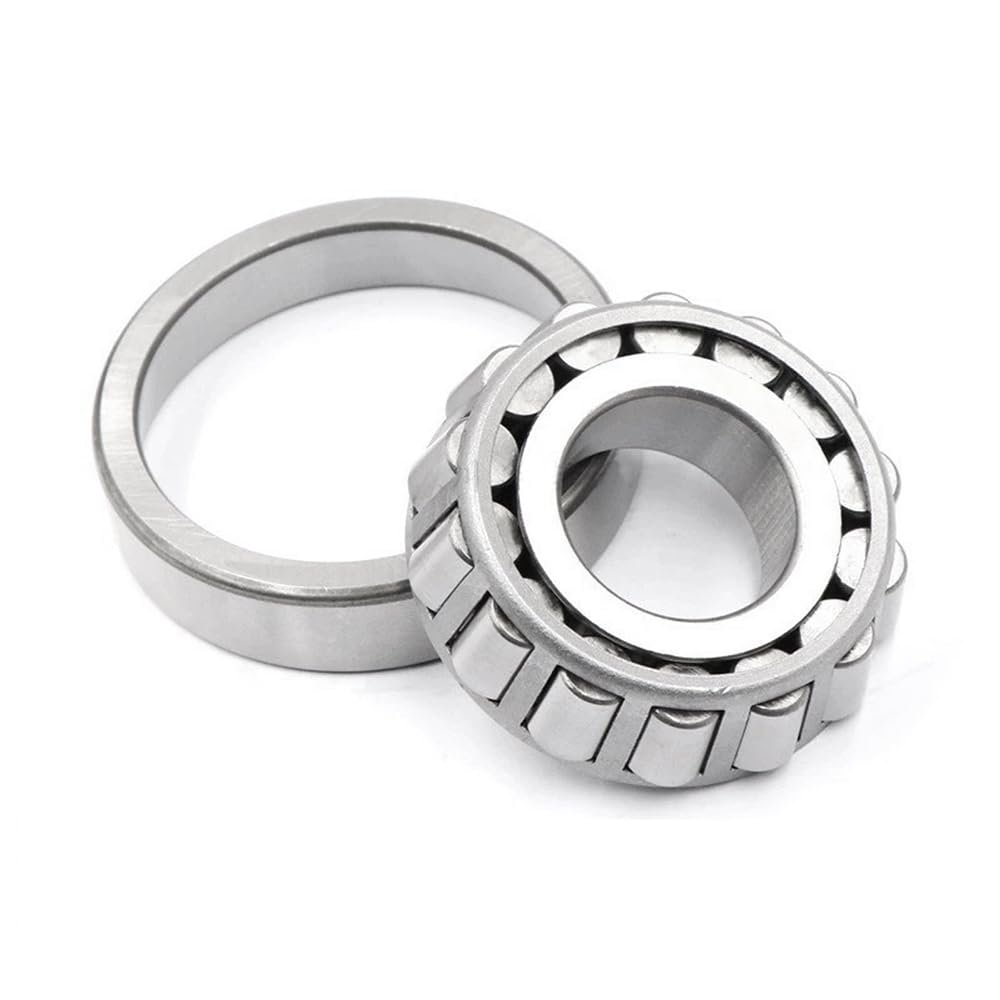

Tapered Roller Bearings LM12748/LM12710 236849/236810 15100/15245 322/28 322/32 13685/13621 15106/15250X JL69345/JL69310

Description

• Brand Name:NoEnNa1.Structural Features: Both inner and outer rings feature tapered raceways, with truncated cone-shaped rolling elements. The inner ring, outer ring, rolling elements, and cage collectively form a complete, separable assembly.me_Null
• 2.Load-bearing capacity: Capable of simultaneously withstanding radial loads and unidirectional axial loads. Axial load capacity increases with contact angle; a larger contact angle makes it suitable for applications where axial loads constitute a higher proportion.
• 3.Applicable Conditions: Commonly used in machinery subjected to combined loads, such as automotive hubs, axles, and gearboxes, as well as machine tool spindles and mining equipment. Particularly suitable for low-to-medium speed applications involving impact or vibration.
• 4.Installation Requirements: Adjust the clearance during installation (achieved through relative axial displacement between the inner and outer rings). Excessive clearance may cause vibration and noise, while insufficient clearance may accelerate wear due to increased heat generation. A suitable locking device must be used in conjunction.
• 5.Performance Limitations: Cannot withstand bidirectional axial loads. For bidirectional load-bearing requirements, must be installed in pairs with opposing directions.

LM12748/LM12710 21.43x45.237x15.494 0.12kg

236849/236810 177.8x260.35x53.975 9.04

15100/15245 25.4x62x19.05 0.29

322/28 28x58x20.25 0.25kg

322/32 32x65x22.25 0.34kg

13685/13621 38.1x69.012x19.050 0.63kg

15106/15250X 26.988x63.500x20.638 0.3kg

JL69345/JL69310 38x63x17 0.2kg
