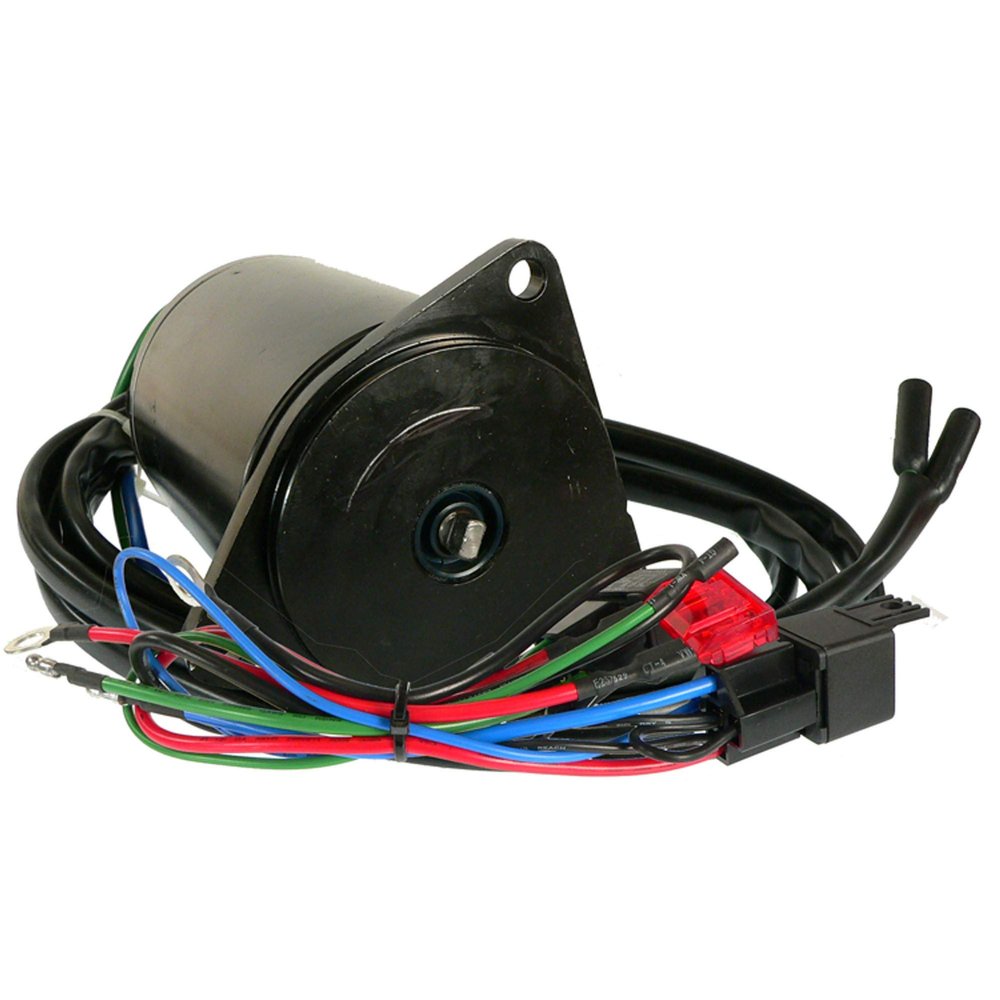

Total Power Parts 430-22146 Tilt Trim Motor Compatible With/Replacement For Yamaha 50-115HP 6H1-43880-00-00

Description

• Specs: Tilt & Trim Motor, Voltage: 12, Rotation: RE, Dimension: Repl. Unit:, OD: 77.7mm, Shaft OD: 7.9mm, Length: 127.5mm, Term Size: (2) Butt Connectors, Shaft: 4mm W x 5.5mm H Tang, Notes:, 2-Wire Replaces 3-Wire OE Unit, 70.7mm Registration OD, Incl. O-Ring, Harness w/32V/30A Fuse & (2) 12V 20A/30A Relays, Compatible with/Replacement for: Yamaha 70-90HP Outboard Motors 1987-91
• Replaces OEM Numbers: API MARINE: PT609NM, ARC -MARINE: 6267, ARROWHEAD: TRM0037, EMP UnitS: 4-6259, J & N: 430-22146, LESTER: 10832, 10848, QUICKSILVER: 8M6007571, WAI: 10832N, Yamaha: 6H1-43880-00-00
• Compatible With/Replacement For: YAMAHA 70ETL 1987-1990, 70TLR 1991-1991, 90ETL 1987-1990, 90ETLJD 1987-1990, 90TJR 1991-1991, 90TLR 1991-1991, C85TLR 1991-1991, CV85EL 1990-1990, CV85ETL 1990-1990, P60TLH 1991-1991
• 1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
• 100% New Aftermarket Tilt & Trim Motor built to meet OEM specifications

Critical Note: Two-Wire Replacement For Three-Wire OE Unit @Verify Registration OD & Shaft Tang Dimensions
**Verify the part fits before purchasing**

Specs:

Unit Type: Tilt & Trim Motor
Voltage: 12
Rotation: RE
Dimension: Repl. Unit:, OD: 77.7mm, Shaft OD: 7.9mm, Length: 127.5mm, Term Size: (2) Butt Connectors, Shaft: 4mm W x 5.5mm H Tang, Notes:, 2-Wire Replaces 3-Wire OE Unit, 70.7mm Registration OD, Incl. O-Ring, Harness w/32V/30A Fuse & (2) 12V 20A/30A Relays,
Brief: Yamaha 70-90HP Outboard Motors 1987-91

Replaces OEM Numbers:

API MARINE: PT609NM
ARCO MARINE: 6267
ARROWHEAD: TRM0037
EMP UnitS: 4-6259
J & N: 430-22146
LESTER: 10832, 10848
QUICKSILVER: 8M6007571
WAI: 10832N
Yamaha: 6H1-43880-00-00

Compatible With/Replacement For:

YAMAHA 70ETL 1987-1990, 70TLR 1991-1991, 90ETL 1987-1990, 90ETLJD 1987-1990, 90TJR 1991-1991, 90TLR 1991-1991, C85TLR 1991-1991, CV85EL 1990-1990, CV85ETL 1990-1990, P60TLH 1991-1991
