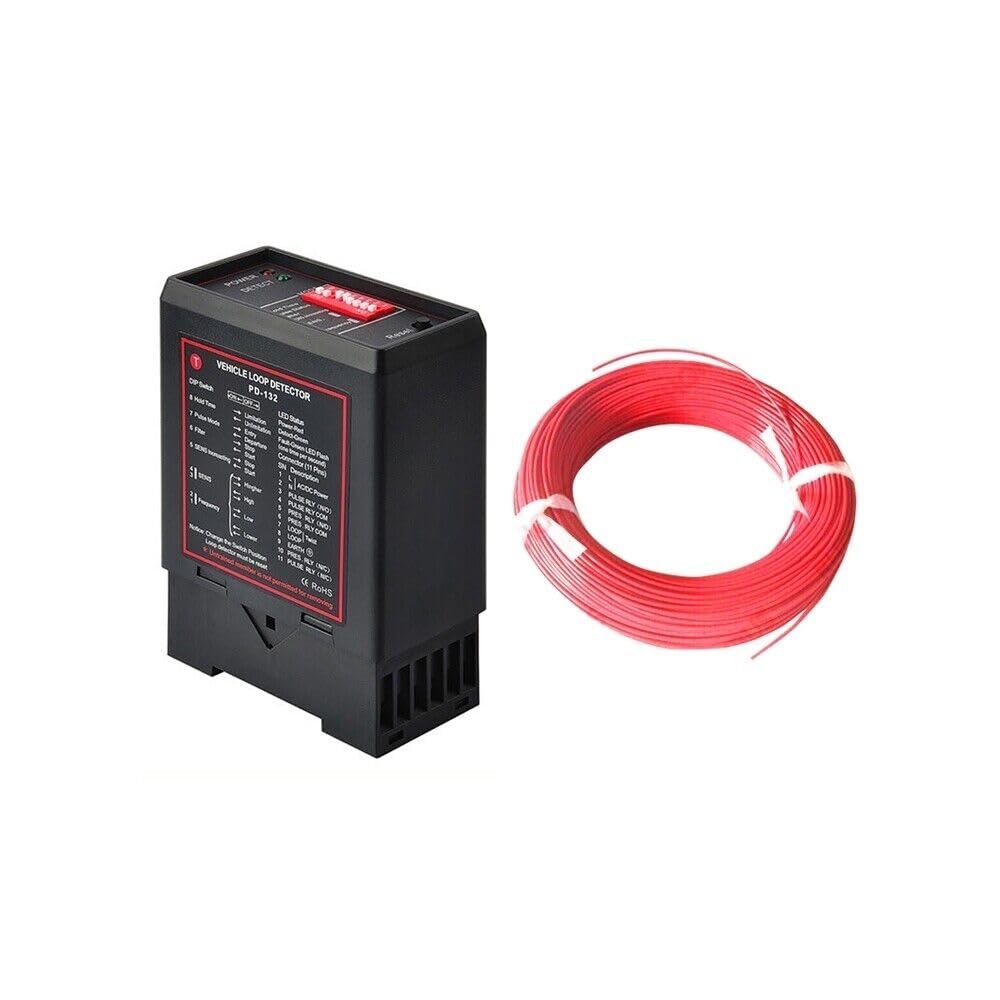

Traffic Inductive Loop Vehicle Detector Signal Control w/50m Induction Coil Wire (DC24V)

Description

• Raffic Inductive Loop Vehicle Detector Signal Control ,Induction Coil Wire

Technical Data

Supply voltageAC220V ,AC110V ,DC24V,DC12V optional
Voltage tolerance AC: +10% / -15%
Voltage tolerance DC: 15%
Power Consumption: 4.5VA
Output relays: 240V/5A
Operating temperature: -20C to +65C
Storage temperature: -40C to +85C
Frequency range: 20 kHz to 170 kHz
Reaction time: 10ms
Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes
Sensitivity: Adjustable in 4 increments
Loop inductance: Total loop plus connection wiring: 50H to 1000H. Ideal is 100H to 300H
Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter
Size of Housing: 78x40x108 mm (L x W x H)

Wire Technical Data

Cross sectional area: 1.0
Conductor structure line number / wire diameter: 19*0.26mm
Insulation thickness: 0.35mm
The average diameter: 2.0mm
20C conductor DC resistance: 19 /km
Voltage: 600V
Working temperature: -80~+250oc
Conductor: twisted nickel plated copper wire
Insulation: PFA Teflon
Color: Red
