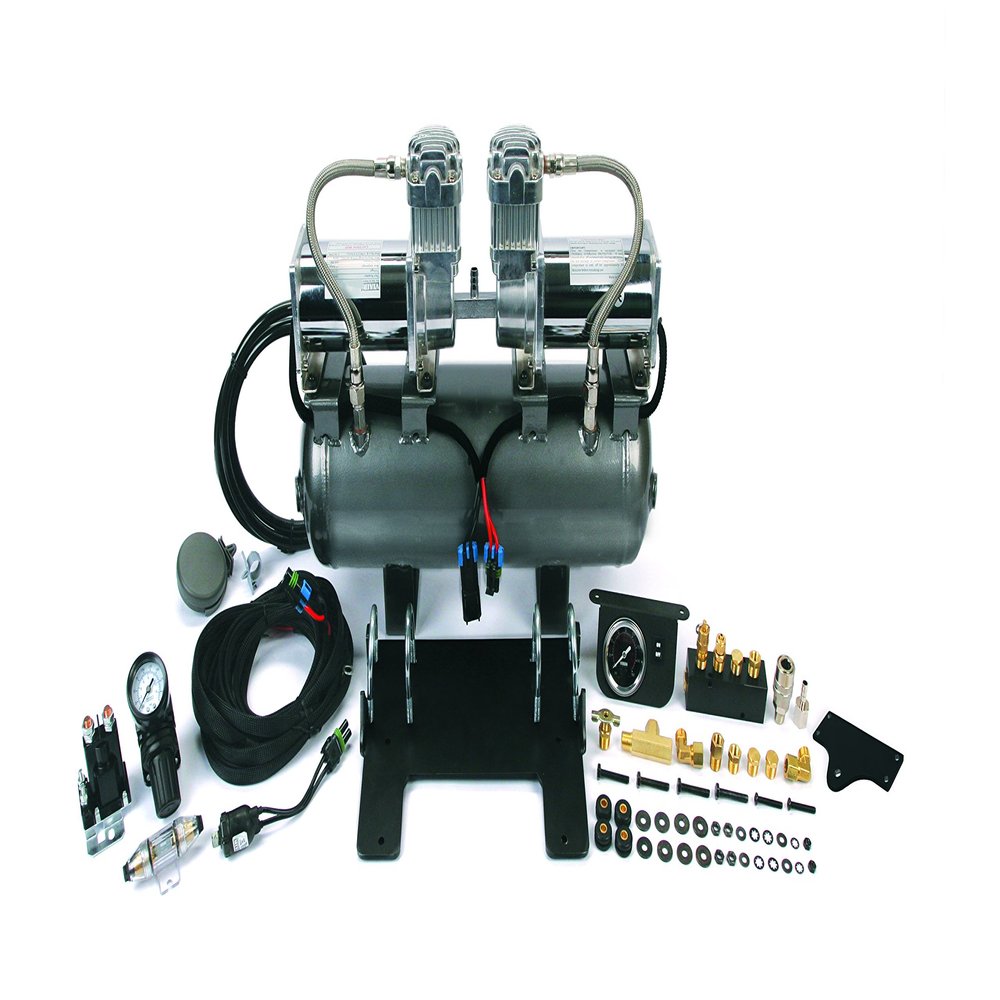

Viair 30001 PSI Hi-Speed Hi-Speed 2 on 2 System

Description

• 07-11 Jeep JK 400C Compressor 150 PSI
• Made in United States
• Package Weight : 45 pounds
• Package Dimensions : 22.0 L x 11.0 H x 17.0 W (inches)

** Please allow 10 days for delivery ** Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high speed onboard air system that provides 150 PSI maximum pressure. Available as a model-specific bolt-on application for 2007-2011 Jeep JK with a crossmember mounting bracket 2on2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward. Note: 2on2 Bolt-On Platform systems in model specific applications for 2007-2011 Jeep JK are equipped with a crossmember mounting bracket. SPECIFICATIONS 12-Volt Permanent Magnetic Motor Duty Cycle: 33% @ 100 PSI Max. Working Pressure: 150 PSI Max. Amp Draw: 59 Amps Ingress Protection Rating: IP67 Dimensions: 18.5L x 5.9W x 13.5H Net Weight: 30 lbs. PRE-INSTALLED 2.0 Gallon 5-Port Air Tank (2) 400C Air Compressors (2) 1/4 Stainless Steel Braided Leader Hoses (2) 1/4 JIC Fittings on Leader Hoses 1/4 NPT Swivel to 1/4 NPT Swivel T-Fitting (Remote Mount Filter) 1/4 NPT Drain Cock Sealed Pressure Switch with Delphi Connectors (110 PSI On, 145 PSI Off) (2) Loomed Compressor Wires Terminated with Delphi Connectors Inline Fuse Holder with Fuse 1/4 NPT Safety Valve (4) 1/4 NPT M Recessed Plugs INCLUDED IN KIT Crossmember Mounting Bracket 60-amp Fuse & Fuse Holder 80-amp Relay (2) 1/4 BSP Adapters for Air Lockers T-Fitting 1/4 NPT F x 1/4 NPT F x 1/4 NPT M 1/8 to 1/4 NPT Reducer Wiring Harness with Delphi Connectors (2) Delphi Connector Plug Kits Billet 1/4 NPT x 6-Port Manifold and Mounting Bracket Air Filter Housing with Installed Element (2) Replacement Air Filter Elements Dash Panel Air Pressure Gauge (0-160 PSI Illuminated) Air Pressure Regulator 15ft. DOT Air Line PERFORMANCE DATA PSI CFM A BAR LPM A 0 4.55 39 0 129.0 39 10 4.18 40 1.0 115.6 41 20 3.96 42 2.0 106.5 45 30 3.74 45 3.0 96.6 47 40 3.50 46 4.0 86.4 50 50 3.25 48 5.0 78.4 53 60 3.00 50 6.0 70.8 58 70 2.83 52 7.0 64.0 57 80 2.60 55 8.0 57.5 54 90 2.46 59 9.0 50.6 52 100 2.28 57 10.0 43.7 50 110 2.12 55 120 1.97 53 130 1.80 52 140 1.60 51 150 1.48 49 * Supply Voltage: 13.8 Volts FILL RATES 2.0 GALLON TANK FILL RATE 0 to 145 PSI 1 min. 00 sec. ( 05 sec.) 110 to 145 PSI 20 sec.( 03 sec.) 37 X 12.5 FILL RATE 0 to 30 PSI 3 min. 25 sec. ( 10 sec.) 15 to 30 PSI 1 min. 40 sec. ( 05 sec.) 40 X 15.5 FILL RATE 0 to 30 PSI 3 min. 35 sec. ( 10 sec.) 15 to 30 PSI 1 min. 45 sec. ( 05 sec.)
