VIPIH 78mm Stock Bore Cylinder Piston Gasket Top End Rebuild Kit Fit For Honda CRF250R 2004-2009 CRF250X 2004-2017 12100-KRN-670 12100-KRN-732

Description

• If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.

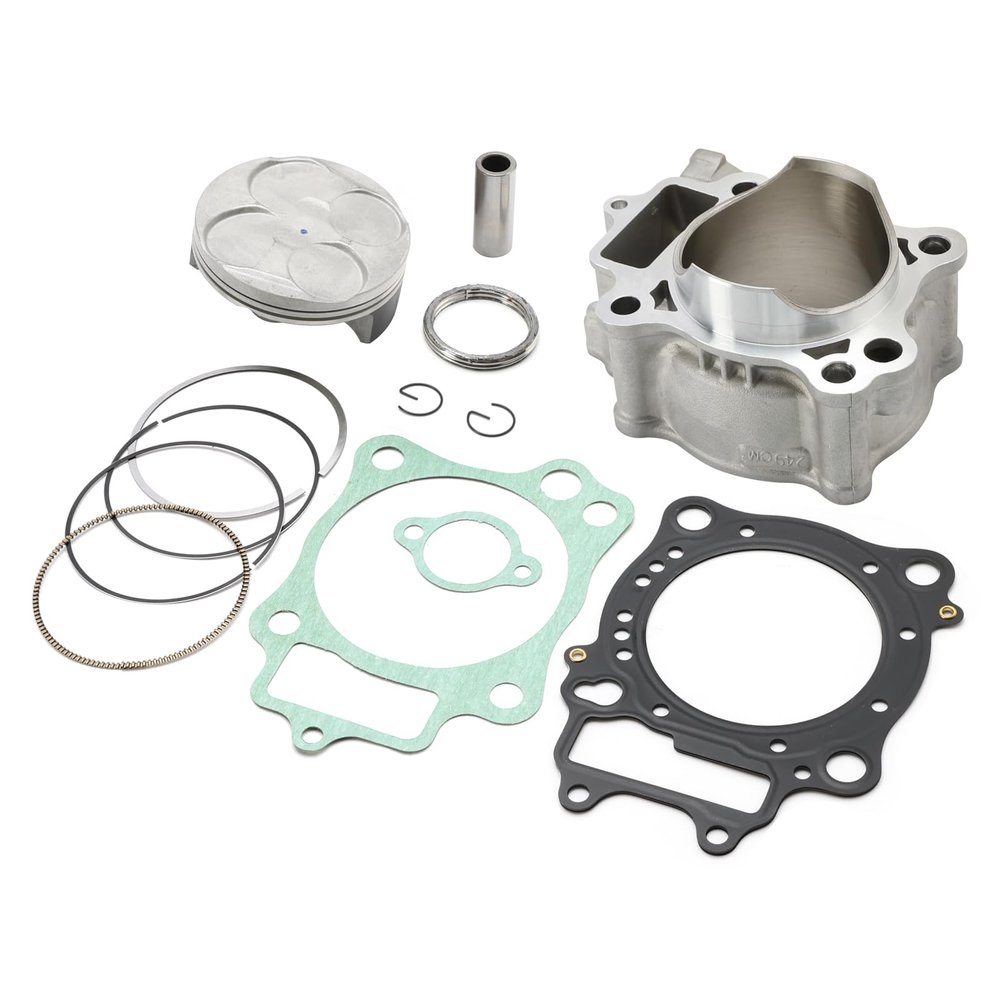

• Kit includes cylinder, forged piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured). Nickel Silicon Carbide plated for long life.
• Piston is anodized for superior heat resistance and longer lifespan. The gaskets use performance materials to increase durability and provide greater reliability.
• Includes all gaskets pictured to rebuild top end. Kit is for standard bore size - 78.0 mm x 52.2 mm stroke, 16mm steel piston pin.
• Compression Ratio: 12.9:1. This kit is excellent as a low-cost replacement for defects in the original cylinder.

78mm Stock Bore Cylinder Piston Gasket Top End Rebuild Kit Fit For Honda CRF250R 2004-2009 CRF250X 2004-2017
Specifications:
Quantity: 1 Set
Material: Aluminum, Steel
Displacement: 249cc
Engine type: 4-Stroke
Bore Type: Standard Bore
Bore diameter: 78.00mm
Stroke: 52.2 mm
Pin diameter: 16mm
Pin Length: 40mm
Replacement Part Number:
Cylinder: 12100-KRN-670, 12100-KRN-732
Cylinder Base Gasket: 12191-KRN-731
Cylinder Head Gasket: 12251-KRN-671, 12251-KRN-731
Piston (Std): 13101-KRN-670, 13101-KRN-850
Pin, Piston: 13111-KRN-850
Piston Ring Set (Std): 13011-KRN-A10, 13011-KRN-850
Circlips, piston (2): 13115-KM7-700
Exhaust Gasket: 18291-KPS-900
Chain Tensioner Gasket: 14560-MEN-671
Fits Make/Model/Year:
Fit for Honda CRF250R 2004-2009
Fit for Honda CRF250X 2004-2017
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package Includes:
1x Cylinder
1x Piston
1x Piston Ring Set
1x 16mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Exhaust Gasket
1x Chain Tensioner Gasket
