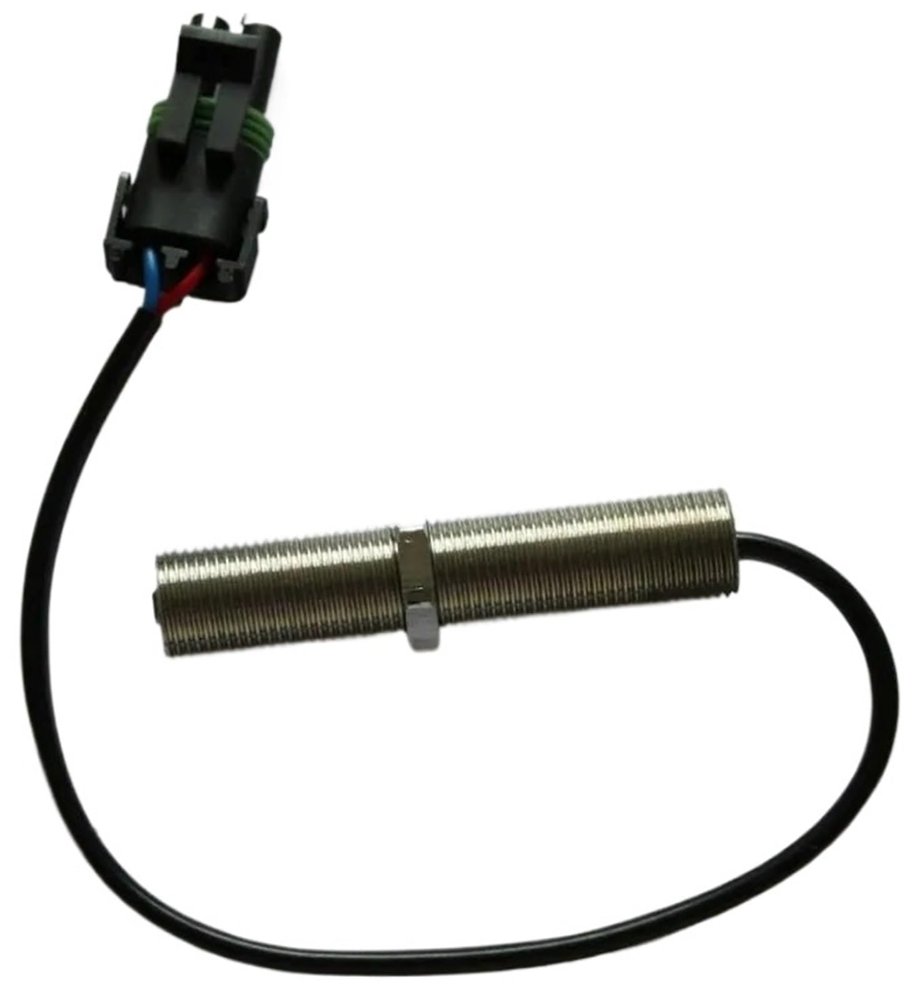

WVCLTVJA Magnetic Pickup MPU 3034572 Speed Sensor Diesel Generator Part M16 80mm Thread Magnetic RPM genset(M-18)

Description

• Oxygen Sensor
• Magnetic Pickup MPU 3034572 Speed Sensor diesel generator part M16 80mm thread magnetic RPM genset

Oxygen Sensor
3034572 Magnetic Pickup (MPU) P/N: 3034572
The speed sensor could be Customerized.
Magnetic pickup
PARAMETER:
Measure range: 50-5000Hz
Inductance: 142MH+25%
Thread Size: 5/8-18 UNF-2A
Tap Drill Size: 37/64 inch
Proximity to Gear Teeth: .028 in min. - .042 in max.(Approximately 1/2 to 3/4 turn)
Temperature Range: -55 deg C to 105 deg C
Output at Cranking Speed: 1.5 volts AC minimum
Maximum Output: 30 volts AC
Coil Resistance: 300 ohms maximum
We can produce Magnetic pickup( speed sensor) according to customer's requirement.
==========
is_customized : Yes
Model Number : 3034572
DIY Supplies : ELECTRICAL
