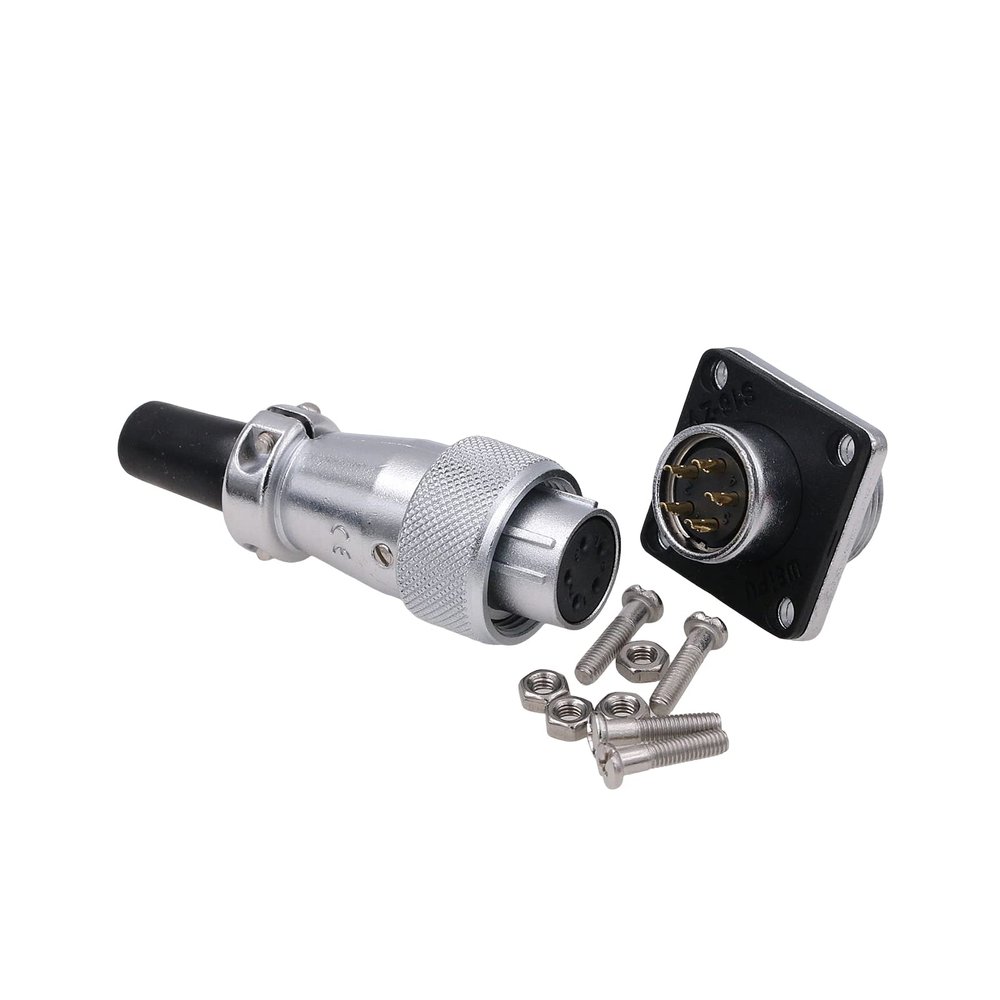

ZBLZGP WS20 Waterproof IP67 Aviation WEIPU Connector Plug Socket M20 Square Panel Mount Electrical Power Metal Thread Connector for Industrial Signal LED (Female Plug and Male Socket, 6Pin 25A/5A)

Description

• WEIPU WS20 Male Plug Female Square Socket Waterproof IP67 Aviation Power Electrical Wire Connector.
• WS20 Pins:2Pin;Contact Diameter: 2.5X2,Contact resistance: 1m ;Wire Size: 4mm /11 AWG;Rated Current / Voltage : 25A / AC 500V;Withstand Voltage : AC 1500V.
• Connection method :threaded connection.Shell material :zinc alloy (chrome-plated).Contact parts material:copper (gold-plated).
• WS20 series metal panel mount connector, mainly used in industrial automation power connectors, automotive, marine, high voltage, waterproof, anti-vibration.
• Electrical Power Connector Plug + Socket, Outdoor Waterproof IP67.Widely used in various machine tools, locomotives, electricity, post and telecommunications, communications, navigation, instrumentation, lighting systems, medical and oil exploration and other fields.

The WEIPU WS20 series is part of the broader WS series of unsealed threaded connectors. These connectors are designed for in line cable to cable connections or cable to panel mount connections, with both male and female ends available. The series features a panel cut out size of 20.5mm, which is suitable for a wide range of installation scenarios. It includes various styles such as round or square flange style panel connectors and straight or angled cable connectors, providing flexibility to adapt to different installation requirements. The WS20 series is specifically engineered to meet the demands of indoor power and data applications, such as in office automation systems, data centers, and small scale industrial control setups, offering reliable connectivity solutions for these environments.
Electrical Specifications
Rated Current:2 pin3 pin4 pin versions: 25A
5 pin, 6 pin5A/25A), 7 pin versions: 10A
9 pin, 12 pin versions: 5A Rated Voltage: 500V (AC) for all pin configurations Withstanding Voltage: 1500V (AC) for 1 minute across all pin configurations
Contact Resistance:
2 pin3 pin4 pin versions: 1m
5 pin, 6 pin5m/1m), 7 pin versions: 2.5m
9 pin, 12 pin versions: 5m
Mechanical Specifications Coupling: Threaded coupling for a secure connection Shell Material: Zinc alloy, providing high strength and corrosion resistance Insert Material: PPS, with a maximum temperature resistance of 260C Contact Material: Brass (gold plated) for enhanced conductivity Termination: Solder, screw, or crimp termination available Cable Outer Diameter Range: Generally suitable for cables with an outer diameter of 6-10mm Durability: Can withstand 500 times of connection and disconnection
Environmental Specifications Working Temperature: Operates within a temperature range of - 40C to + 85C Protection Level: Not suitable for outdoor use due to lack of waterproof and dust - proof features; designed primarily for indoor applications
